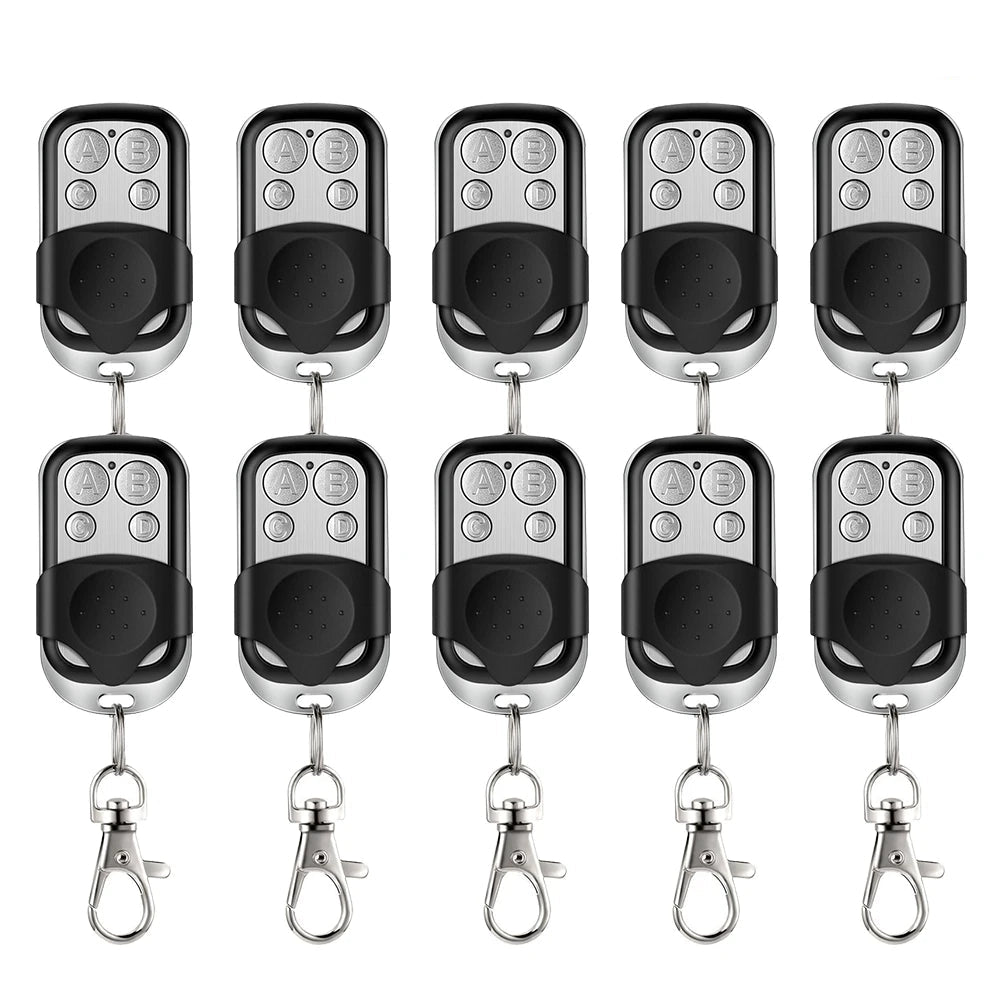

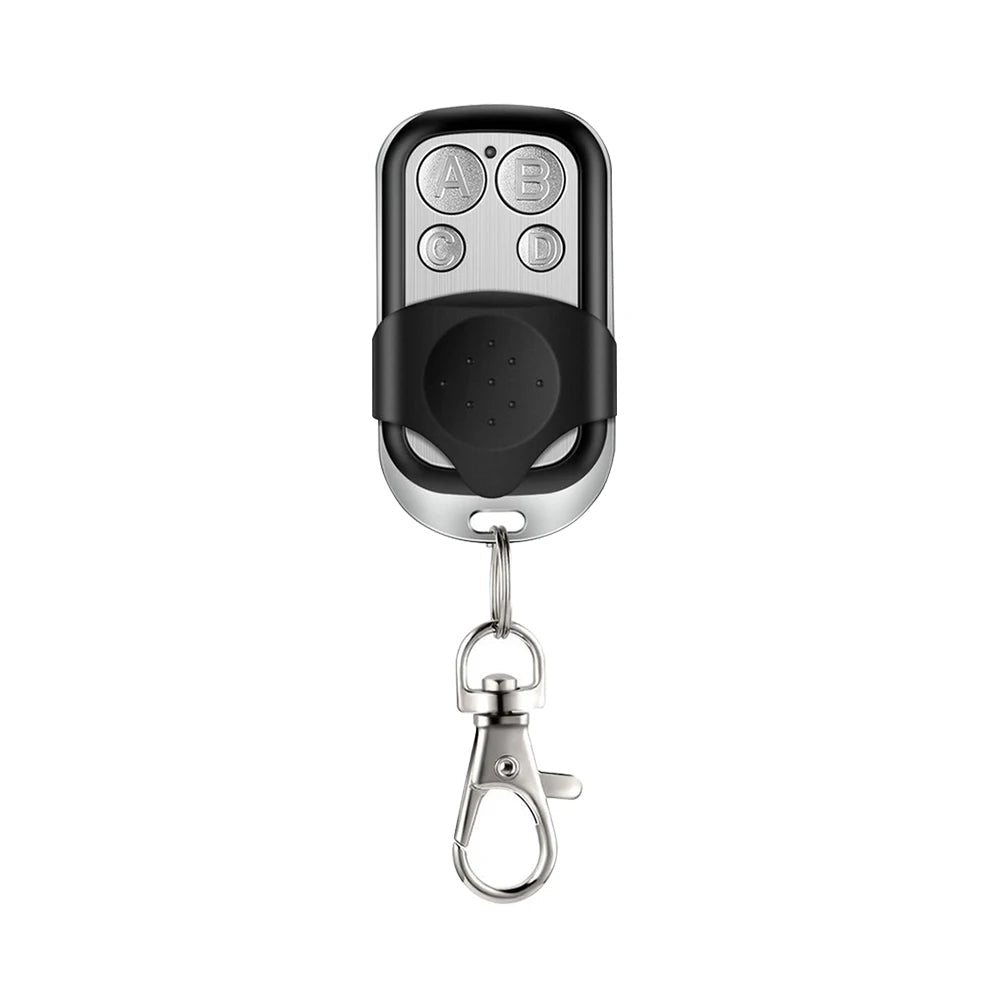

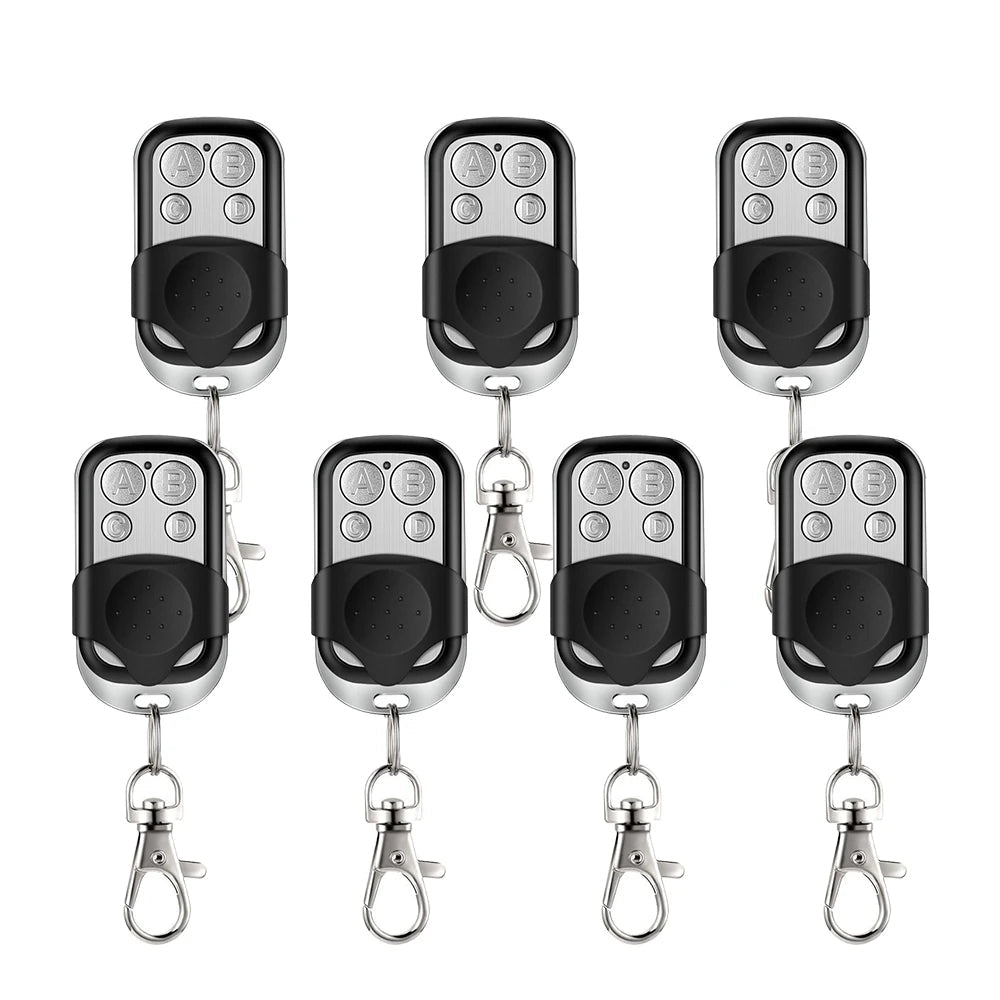

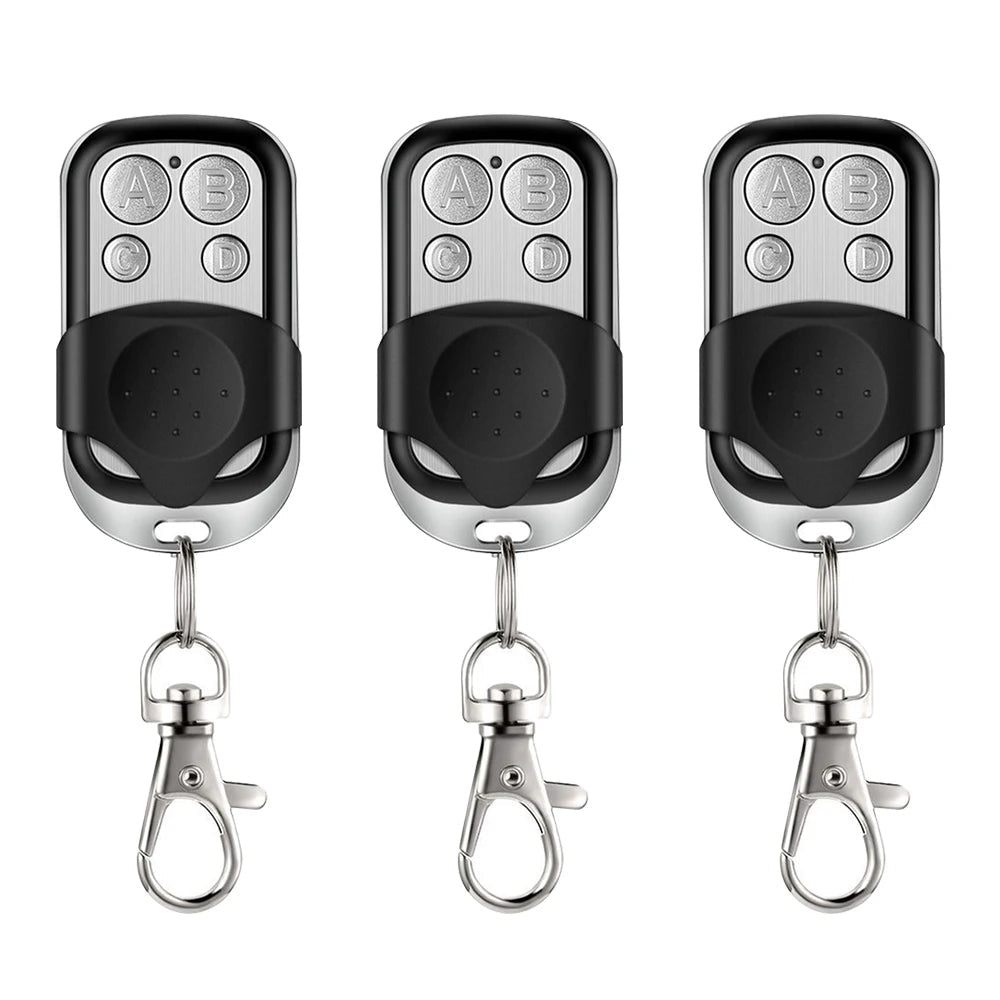

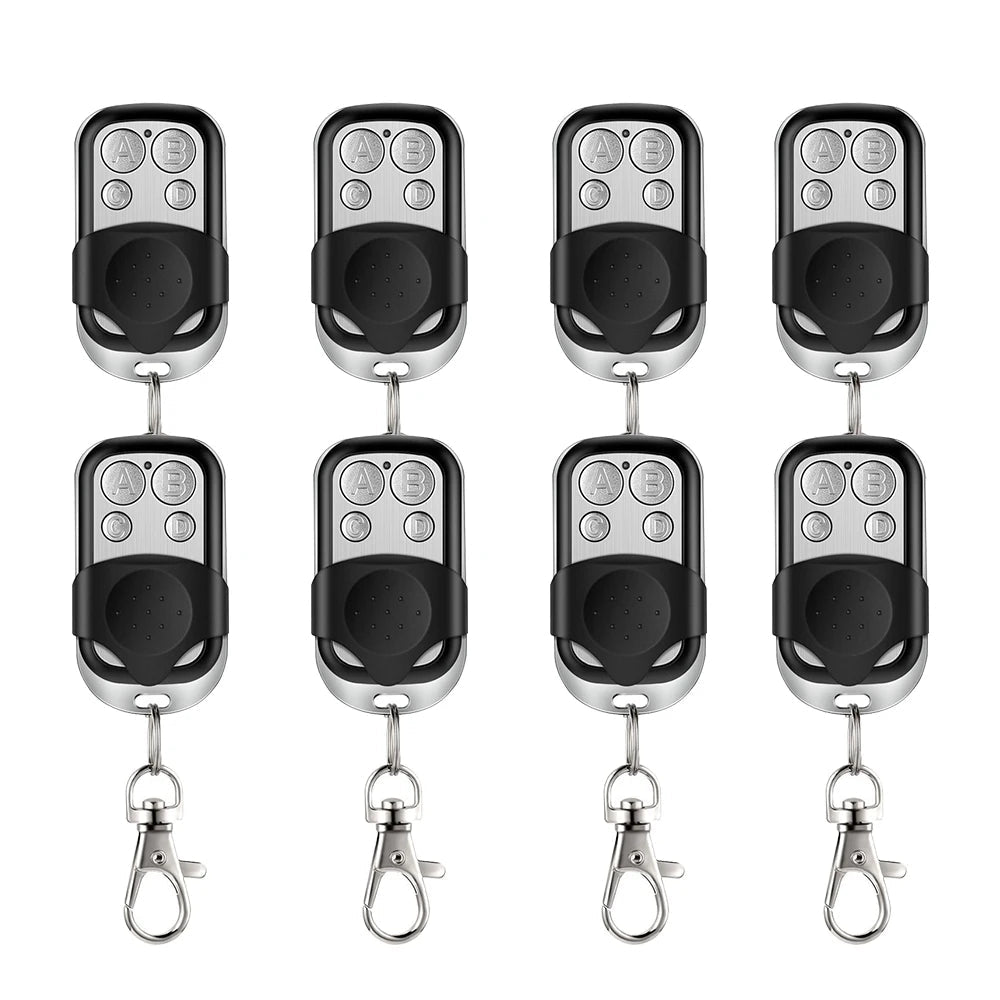

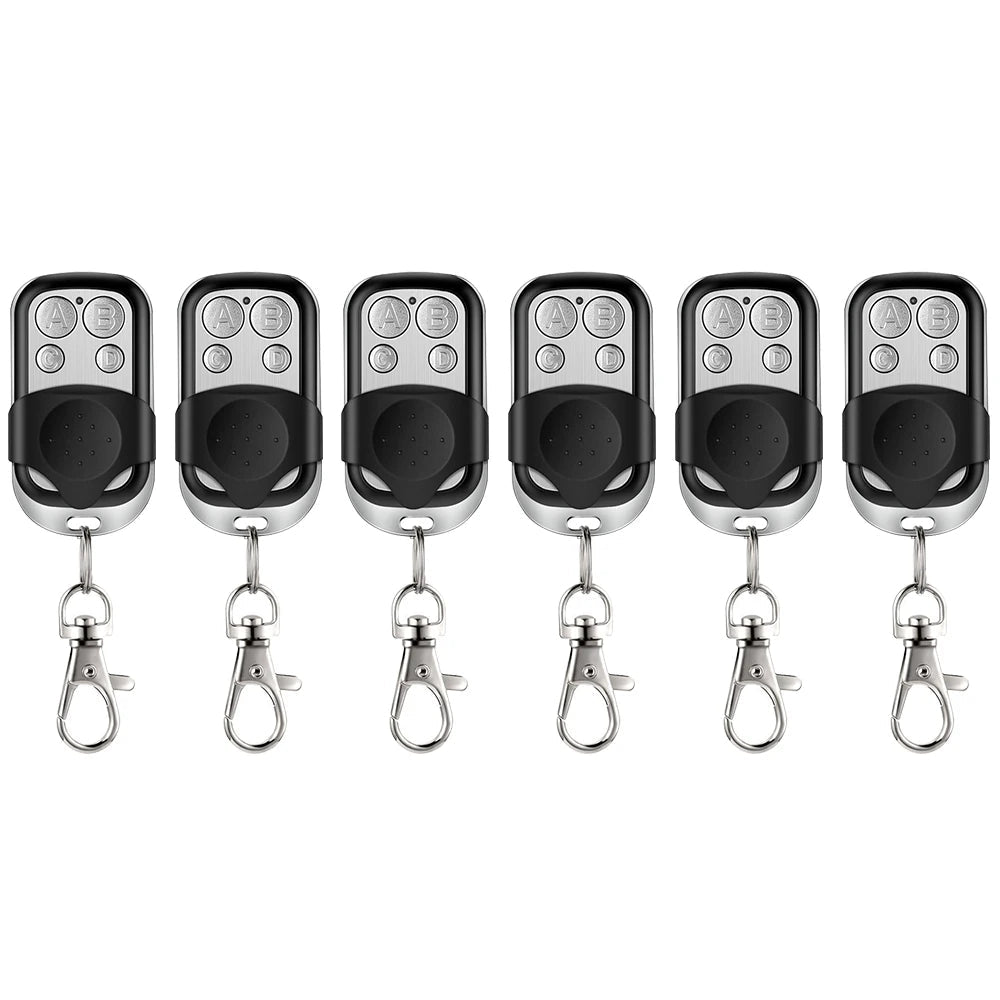

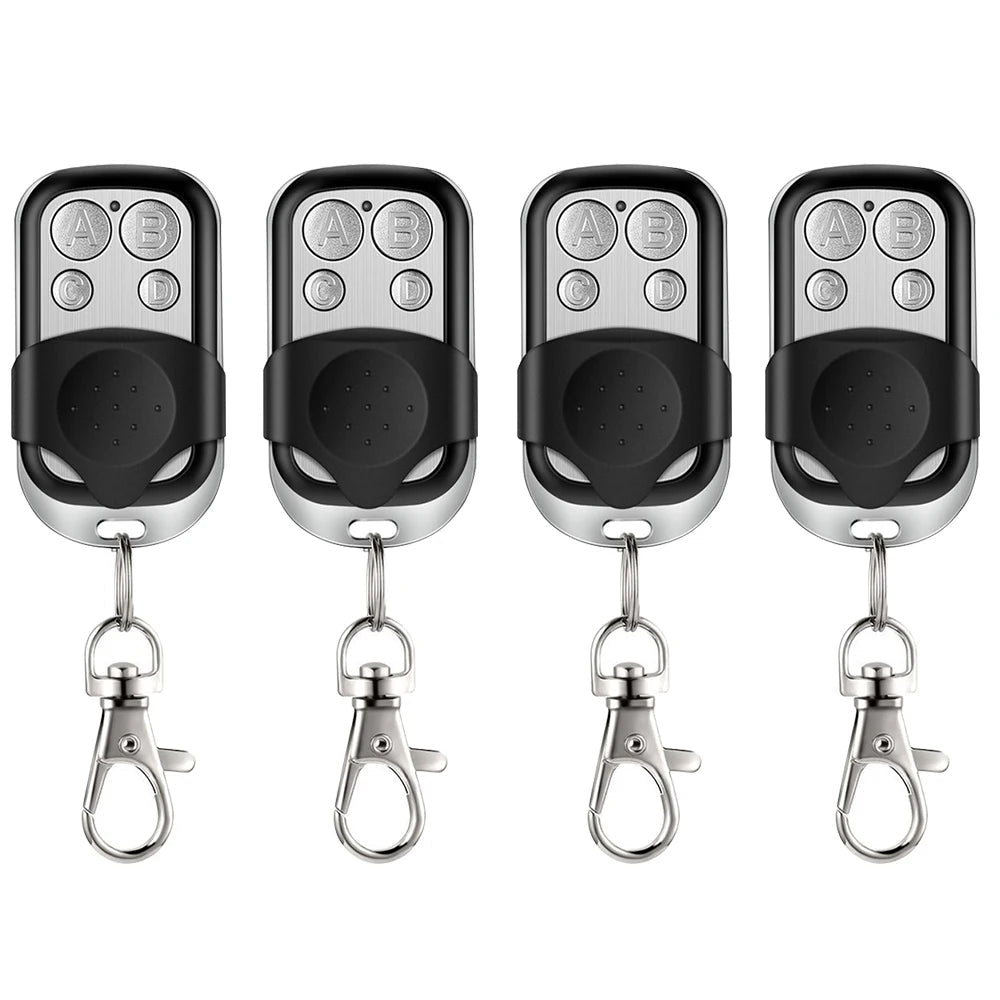

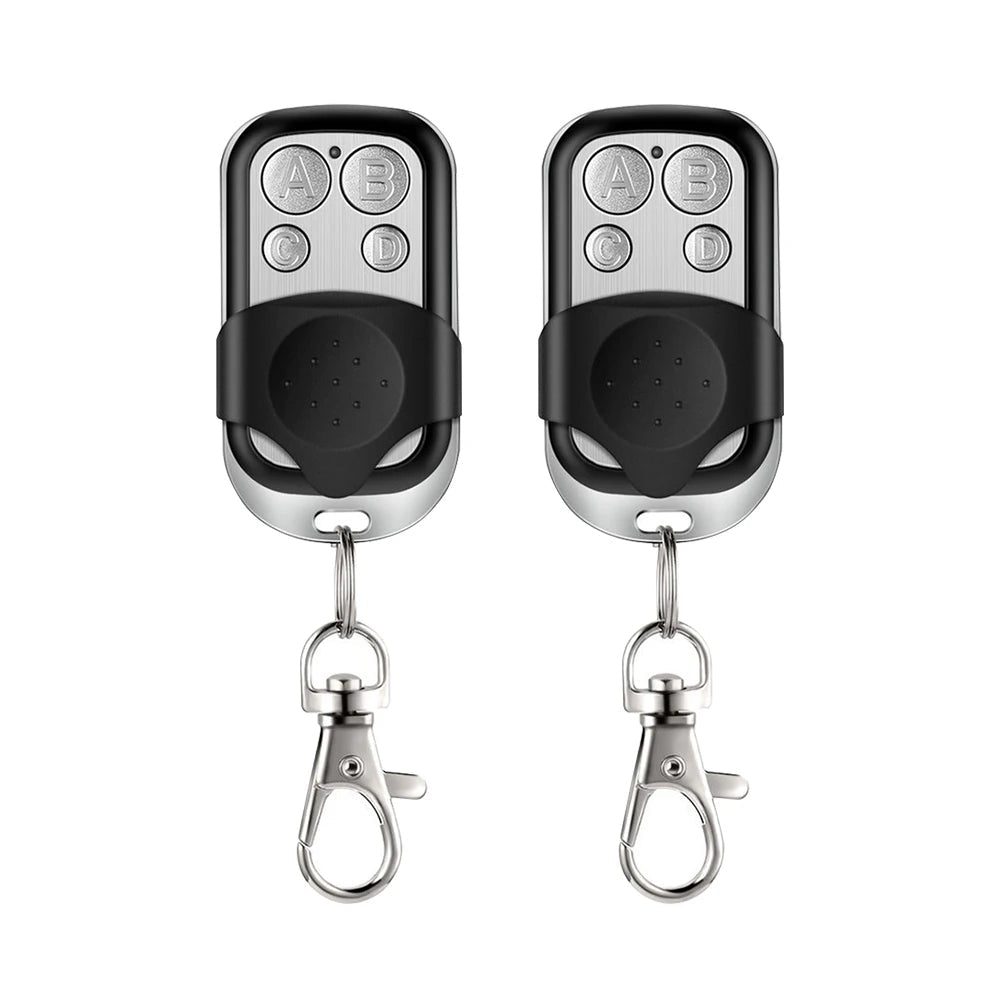

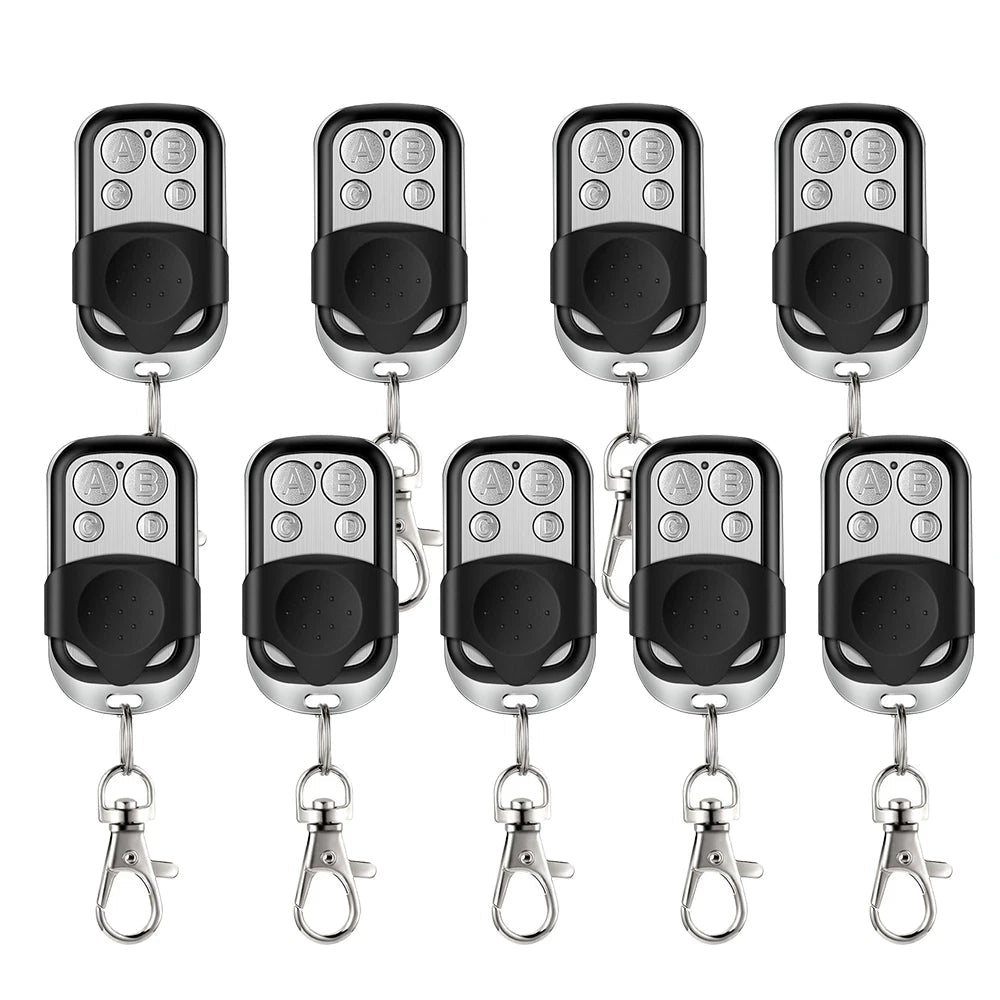

Universal 4-Button 433MHz Garage Door Remote Control – Fixed & Learning Code Cloner

Easily replace or duplicate your garage, gate, or alarm remote with this universal 4-channel 433MHz duplicator. Designed for fixed and learning code remotes, this compact key fob allows you to clone up to four remotes into one device — perfect for managing multiple systems with a single controller.

SPECIFICATIONS

• Model Number: KB-01
• Frequency: 433MHz
• Encoding Method: Fixed code, Rolling code (limited)
• Channels: 4
• Battery: 27A 12V (included)
• Operating Distance: Up to 100 meters (open space)
• Size: 55 × 28 × 14 mm
• Weight: 33g
• Color: Black
• Material: ABS
• Origin: Mainland China
• High-Concern Chemicals: None

FEATURES

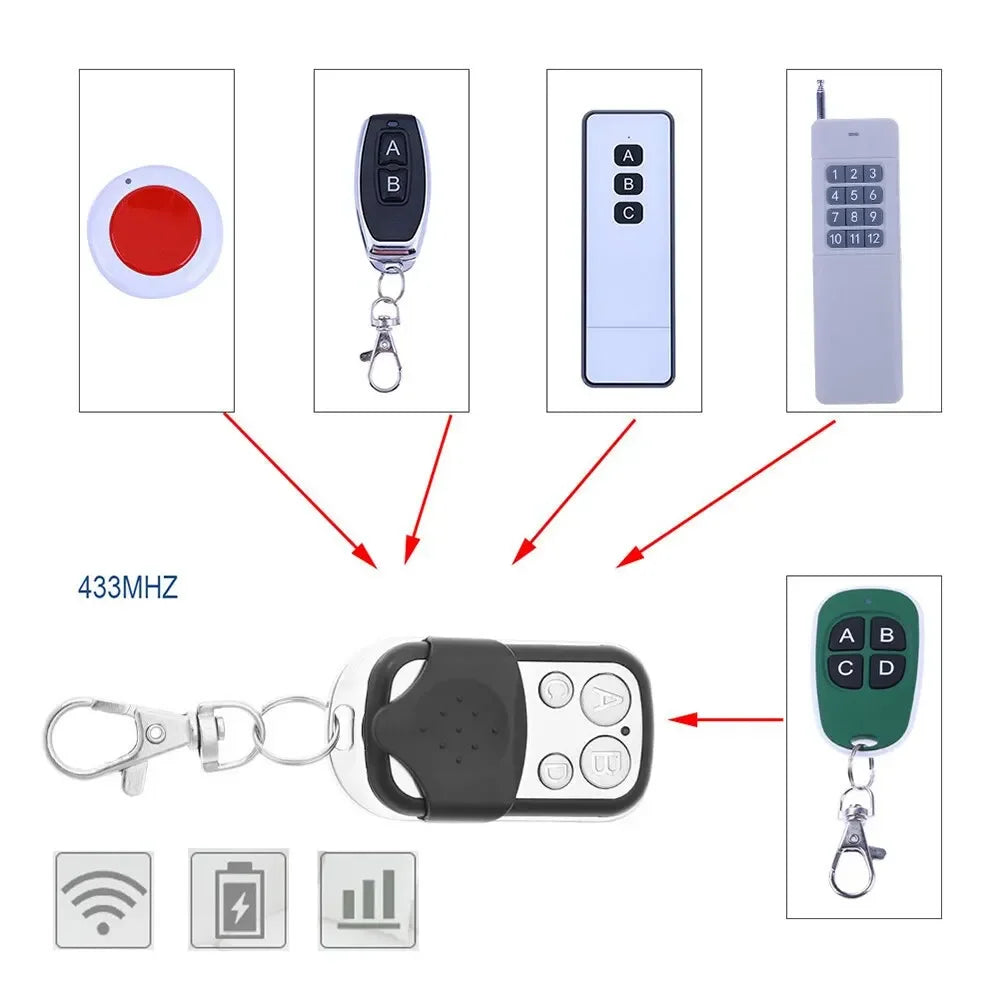

• Clone up to 4 remotes into one compact unit
• Supports most 433MHz fixed and learning code remotes
• Easy reset and copy functions with LED feedback
• Wide compatibility with IC models like 2260, 2262, 2240, 1527, and many more
• Multi-use applications for gates, garages, cars, alarms, sunroofs, heaters, and lights
• Simple one-handed operation for fast and secure copying
• Battery included – ready to use out of the box

SUPPORTED CHIPSETS

• PT2260, PT2262, PT2264, PT2240
• SC2260, SC2262
• EV1527, FP1527, HS1527, HS2240, SCT527, SCL1527

Note: Rolling code remotes are generally not compatible. Please verify your chip model before purchase.

APPLICATION EXAMPLES

• Garage door access control
• Electronic gate systems
• Car central locking systems
• Home lighting and appliance control
• Car sunroof operation
• Heating system control
• Short-range wireless alarms and security systems

COPYING INSTRUCTIONS

1. Reset the Copy Remote:

   • Press any two buttons on the clone remote simultaneously until the LED flashes — reset is successful.

2. Copy the Signal:

• Place the original and copy remotes on a flat surface, close together.
• Press and hold the target button on the clone remote (LED turns on).
• While holding, press and hold the same button on the original remote.
• When the LED on the clone remote flashes rapidly, the code has been copied.
• Repeat for other buttons.

PACKAGE INCLUDES

• 1 × 433MHz 4-Button Remote Control (battery included)

NOTE

• Not compatible with encrypted or rolling code chips (e.g., HCS301)
• Verify your original remote's chip model before purchasing for best results
• If cloning fails, double-check frequency and chip compatibility
