PROTECO ANGIE 433.92MHz Garage Remote Control – Fixed Code 4-Button Transmitter for Gate & Barrier

Replace your original PROTECO ANGIE remote or add a backup with this 4-button 433.92MHz Fixed Code Remote Control, ideal for gates, garage doors, barriers, curtains, and sirens.

With reliable RF performance and easy fixed-code pairing, it ensures simple control over your automation system.

SPECIFICATIONS

• Model: PROTECO ANGIE
• Brand Name: KUANGZIPENG
• Buttons: 4
• Frequency: 433MHz / 433.92MHz
• Encoding Type: Fixed Code / Learning Code
• Voltage: 12V (27A battery required)
• Transmission Distance: 30–100m (open space)
• Certification: CE
• Origin: Mainland China
• Use For: Garage, Gate, Door, Barrier, Curtain, Siren
• Wireless Communication: RF

FEATURES

• Compatible Replacement
  Specifically designed for systems using the PROTECO ANGIE fixed code protocol.
• Reliable RF Signal
  Stable 433.92MHz signal with up to 100m range in open areas.
• Durable Design
  Compact and robust, suitable for regular outdoor and indoor use.
• Easy to Use
  Simple fixed-code cloning or pairing to your receiver, no complex programming required.

PAIRING INSTRUCTIONS

This remote works using a fixed code protocol. Please check your receiver’s manual or follow these typical steps:

1. On the Receiver Unit:
   • Locate the ‘Learn’ or ‘Programming’ button.
   • Press and hold until the LED indicator flashes.

2. On the Remote:
   • Press and hold the button you want to program.
   • Wait until the receiver LED confirms the pairing (steady or blinking light).
   • Release the button – setup is complete.

If your system requires remote-to-remote cloning, please ensure the original remote is still functional and follow the included manual for face-to-face copying.

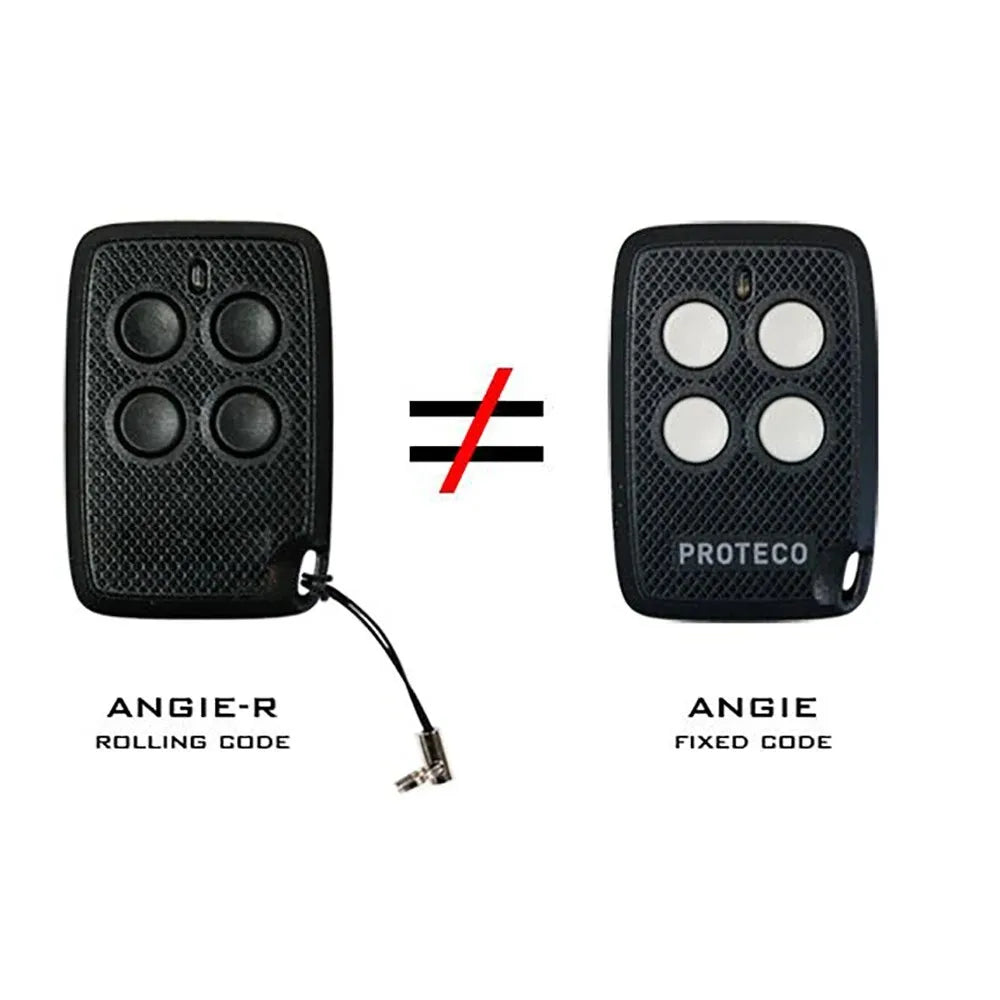

Note: Not compatible with rolling code systems. Always confirm your existing system uses fixed code at 433.92MHz before purchase.
