Description

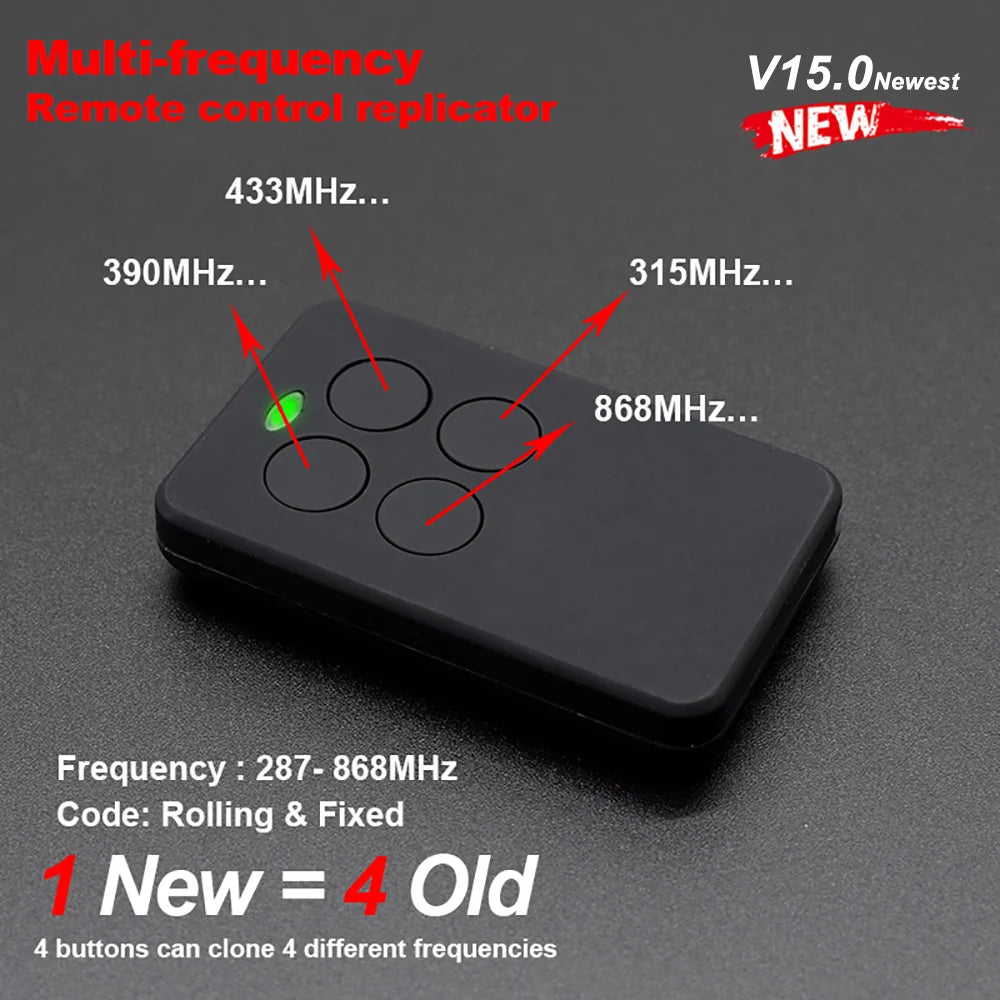

Upgrade your access control with this 2023 model universal garage door remote, featuring multi-frequency support from 280MHz to 900MHz and the ability to clone both fixed and rolling code remotes. This powerful 4-button duplicator supports up to four different remotes in one, making it ideal for homes, businesses, and multi-device setups.
With improved compatibility, stronger signal range, and a durable design, this remote control supports popular frequencies like 433.92MHz, 868.35MHz, 315MHz, 390MHz, and more. A great option for garage doors, gates, alarm systems, and automatic doors.
SPECIFICATIONS
- Brand Name: SCIMAGIC-RC
- Model Number: Garage Door Remote Control
- Material: Metal & ABS
- Buttons: 4
- Frequency Range: 287–900 MHz
- Supported Frequencies: 300, 306, 310, 315, 330, 360, 390, 410, 430.5, 433.42, 433.92, 868.35 MHz and more
- Encoding: Learning Code (supports Fixed & Rolling Code)
- Battery Type: CR2032 (included)
- Rated Voltage: 3V
- Size: 50 × 40 × 10 mm
- Weight: 35g
- Control Distance: Up to 150m in open area
- Certification: CE
- Origin: Mainland China
Key Features:
- Clone up to 4 different brand remotes in one unit
- Supports over 20 popular garage and gate brands
- Strong encryption and privacy protection
- Compact, stylish, and easy to use
- Low power consumption – battery lasts up to 2 years
- Lightweight and portable with included keychain

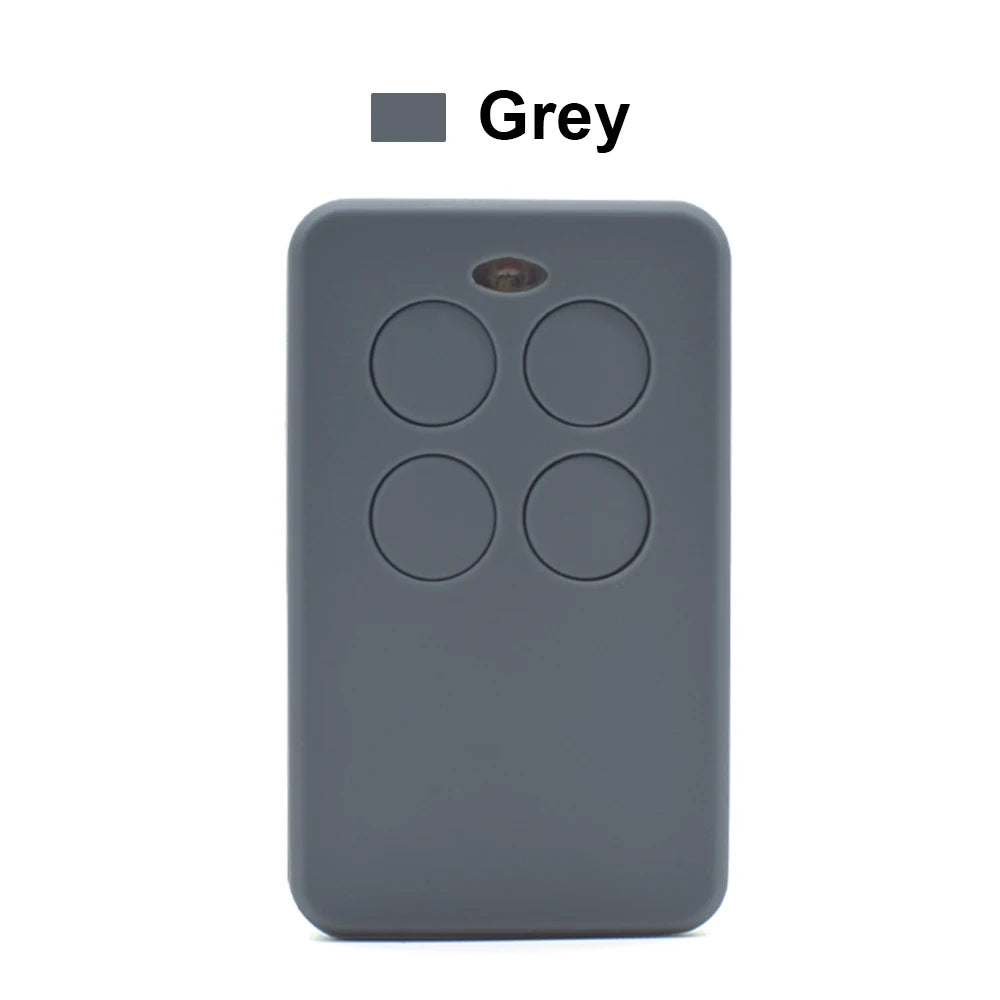

- Multi-color variants (blue, grey, orange)

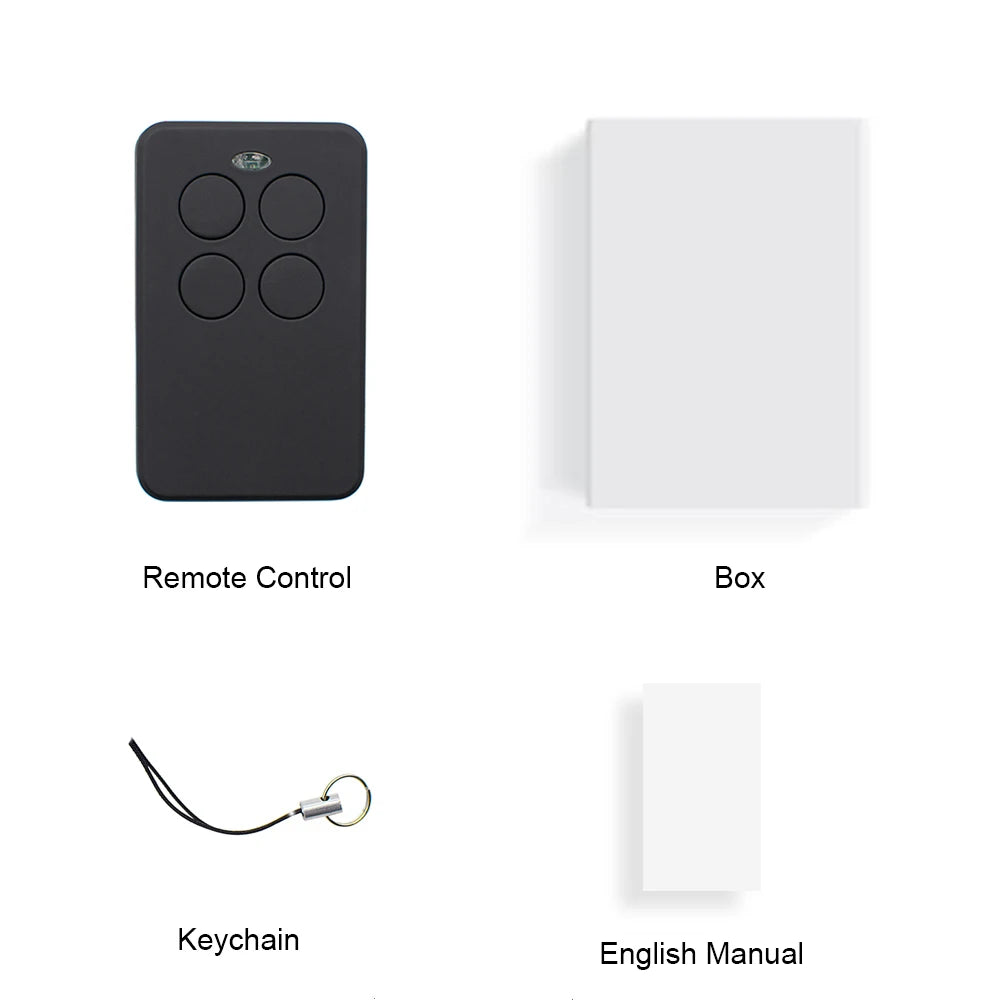

Package Includes:
- 1 × Remote Control
- 1 × CR2032 Battery (installed)
- 1 × Keychain
- 1 × English Manual
Pairing Instructions
1. Clear Existing Code:
- Press and hold Button A and Button B at the same time until the LED blinks three times.
- Release Button B while still holding Button A, then press Button B three times.
- The LED should flash rapidly – this confirms all memory has been erased.

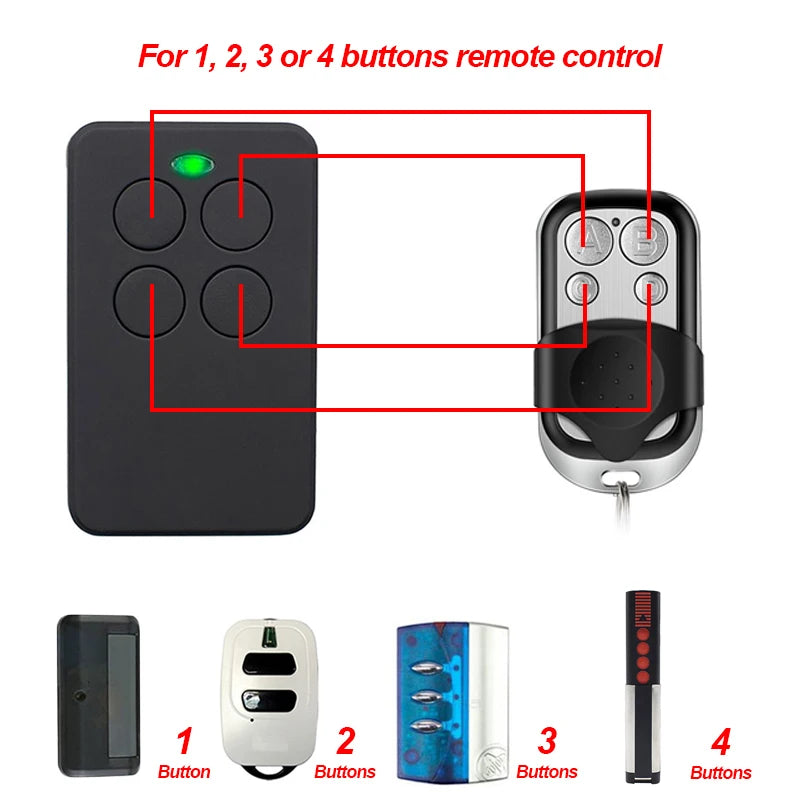

2. Copy Original Remote Signal:
- Place your original and new remotes close together (side-by-side, ideally touching).
- Press and hold the matching button on both remotes.
- When the LED on the new remote flashes rapidly, the code has been copied successfully.
- Repeat for the remaining buttons as needed.
3. For Rolling Code Remotes:
- After cloning, you must program the new remote to your receiver.
- This typically involves pressing the “Learn” button on your garage/gate receiver, then pressing the button on your new remote.
- Refer to your device's manual for exact programming steps.
This multi-brand, multi-frequency duplicator is your all-in-one solution for replacing lost or damaged remotes across a wide range of devices. Simple to use, highly compatible, and built to last.
