Description
This universal garage door remote control duplicator is a compact, easy-to-use tool designed to clone a wide range of fixed and learning code remotes across a broad frequency spectrum (286–868MHz). With a user-friendly interface and robust compatibility, it’s ideal for garage doors, gate systems, car alarms, and other wireless control devices.
SPECIFICATIONS
- Name: Universal Remote Control
- Encoding Method: Learning code (Fixed & Rolling code support varies)
- Frequency Range: 286MHz–868MHz
- Learning Frequencies: 287, 300, 306, 310, 315, 315.5, 330, 360, 390, 410, 430.5, 433.42, 433.92, 868.35MHz, 286–361MHz, 384–400MHz
- Buttons: 4
- Battery: CR2032 (included)
- Transmission Distance: 30–150m (open area)
- Size: 63 × 37 × 12 mm
- Weight: 35g
- Material: ABS

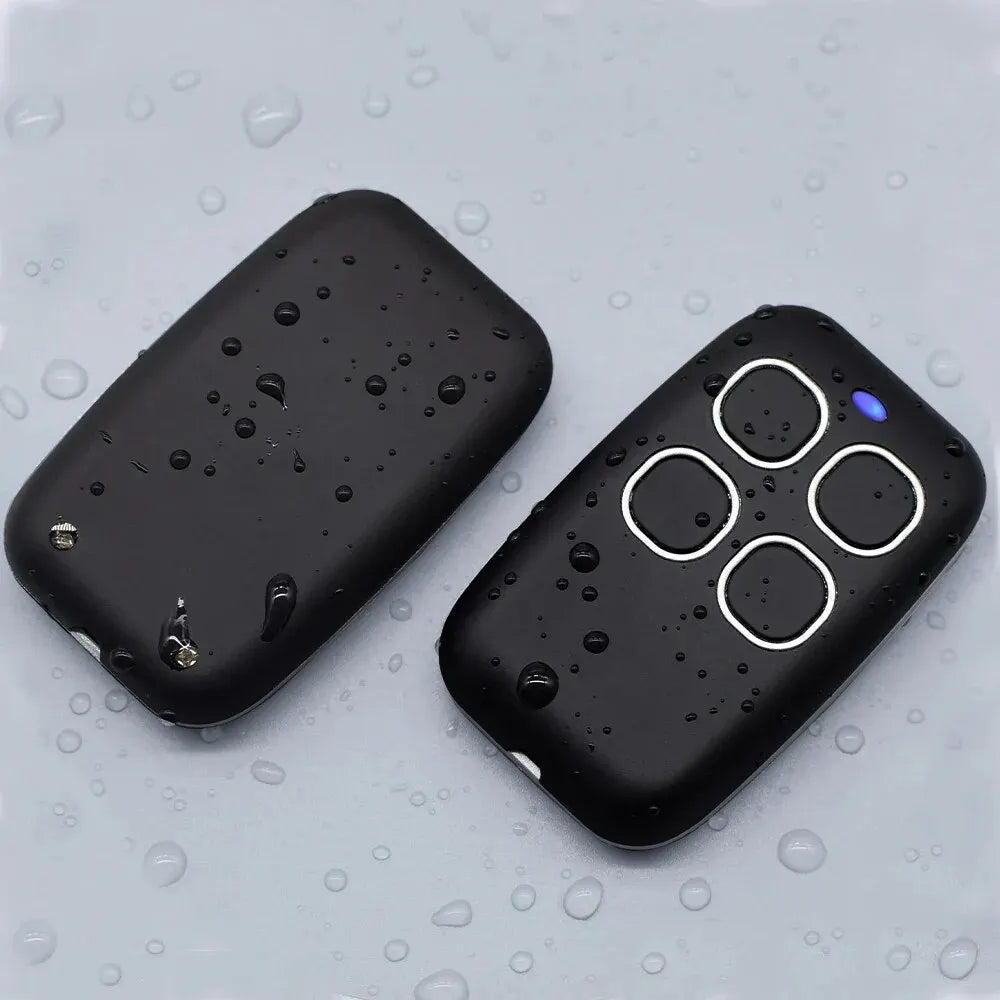

- Waterproof Rating: IPX6 (SMG256-grade waterproofing)
- Origin: Mainland China
- High-Concern Chemicals: None
FEATURES
- Multi-Frequency Code Grabber: Compatible with a wide range of RF remotes from 286–868MHz
- Supports Cloning of Popular Fixed Code Chips: Includes PT2262, PT2260, 2240, 1527, HT6010, HT12D, and many more

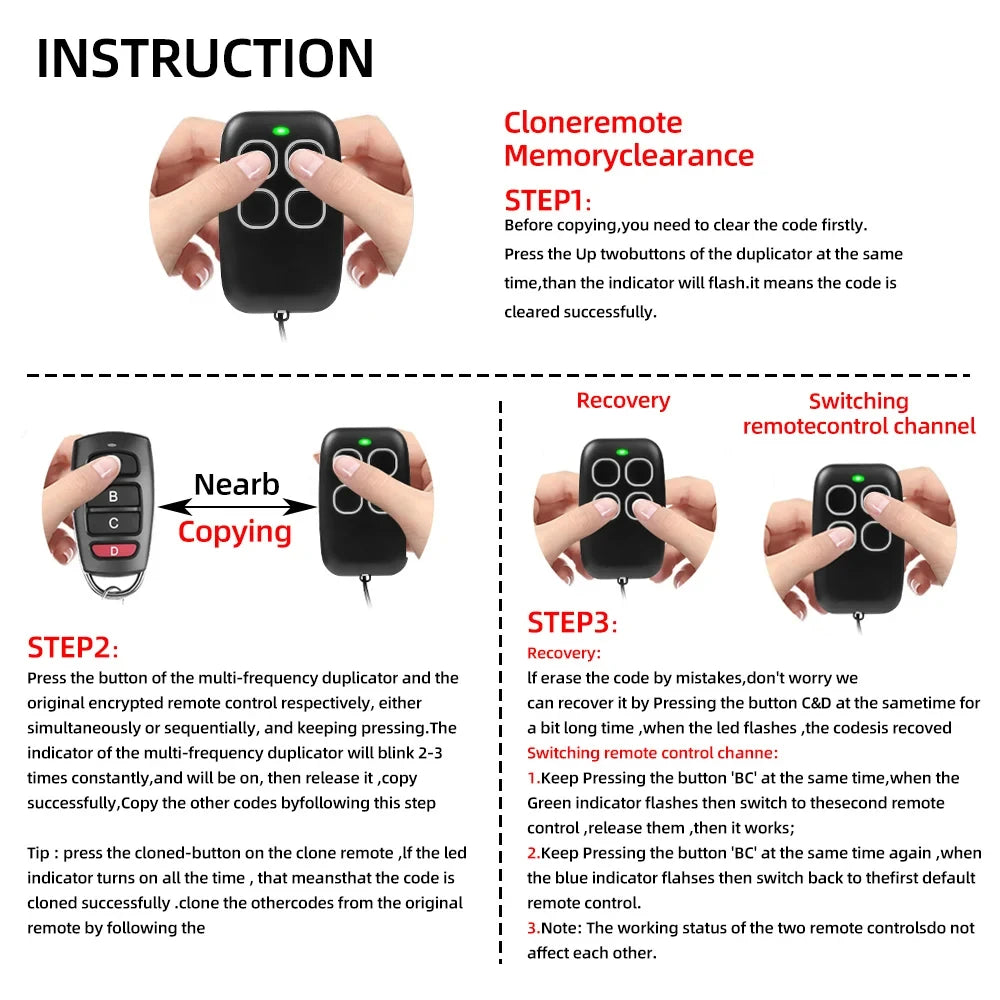

- User-Friendly Copying: Clone buttons from original remotes in seconds with LED feedback
- Compact and Portable: Lightweight design with a sleek form factor for keyring or pocket use
- Versatile Use: Ideal for garage doors, gates, motorcycles, car alarms, shutters, lights, and security systems
- Includes Hand Transmitter: Makes it convenient to operate your devices remotely
SUPPORTED CHIPSETS (Examples Only)
- PT2260, PT2262, PT2264, PT2240
- SC2260, SC2262
- EV1527, HS1527, HX1527
- HT600 series, HT12D, FP527, PIC16F629/630
- SMC918, AX5326-3, AX5326-4, and many others
As long as the numeric portion of the chip model matches, brand prefixes may vary.
COMPATIBILITY NOTES
- If your original remote uses fixed code: Clone and use directly — no programming needed
- If it uses rolling code: You must pair it with your receiver after cloning to activate it
- If the LED stays solid red when attempting to clone: The chip is not supported
NOT COMPATIBLE WITH (Examples)
- HORMANN-BS 868MHz
- ROPER-868MHz
- SCS-SENTINEL-433MHz
- MOTORLINE, MASTERcode, PTX-5
- TX55-868-4, MUTAN-CODE
- ECA-433MHz, 893LM
- TO.GO VA, AT-4
- Unbranded or encrypted rolling code systems
APPLICATIONS
- Garage door and gate openers
- Car and motorcycle alarms
- Rolling shutters and blinds
- Home security systems
- Industrial short-range control systems
PACKAGE INCLUDES
-
1 × Multi-Frequency Remote Control (Battery Included)
