Description

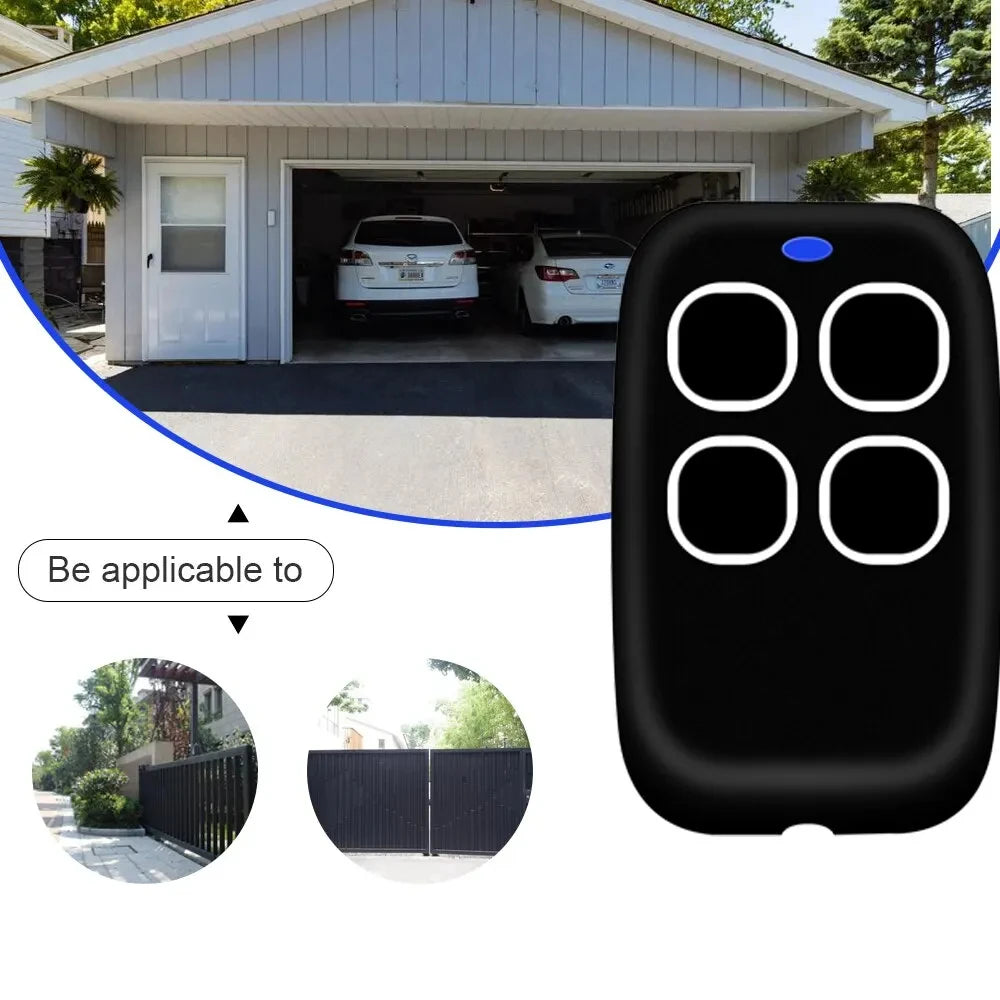

Control your garage or gate access with this Multi-Frequency Garage Remote Control, capable of cloning both fixed and rolling codes across a broad 286–868MHz frequency range. Built for reliability, convenience, and security—ideal for garages, gates, alarms, and more.
SPECIFICATIONS
- Multi-Frequency Cloning: Supports wide frequency range from 286MHz to 868MHz.
- Command Hand Transmitter: Clone your original remote face-to-face without extra tools or tech.
- User-Friendly Operation: Simple cloning steps with LED feedback.
- Compact & Portable: Lightweight ABS shell and pocket-sized design.
- Secure: Prevents unauthorized signal grabbing by mimicking encrypted protocols.

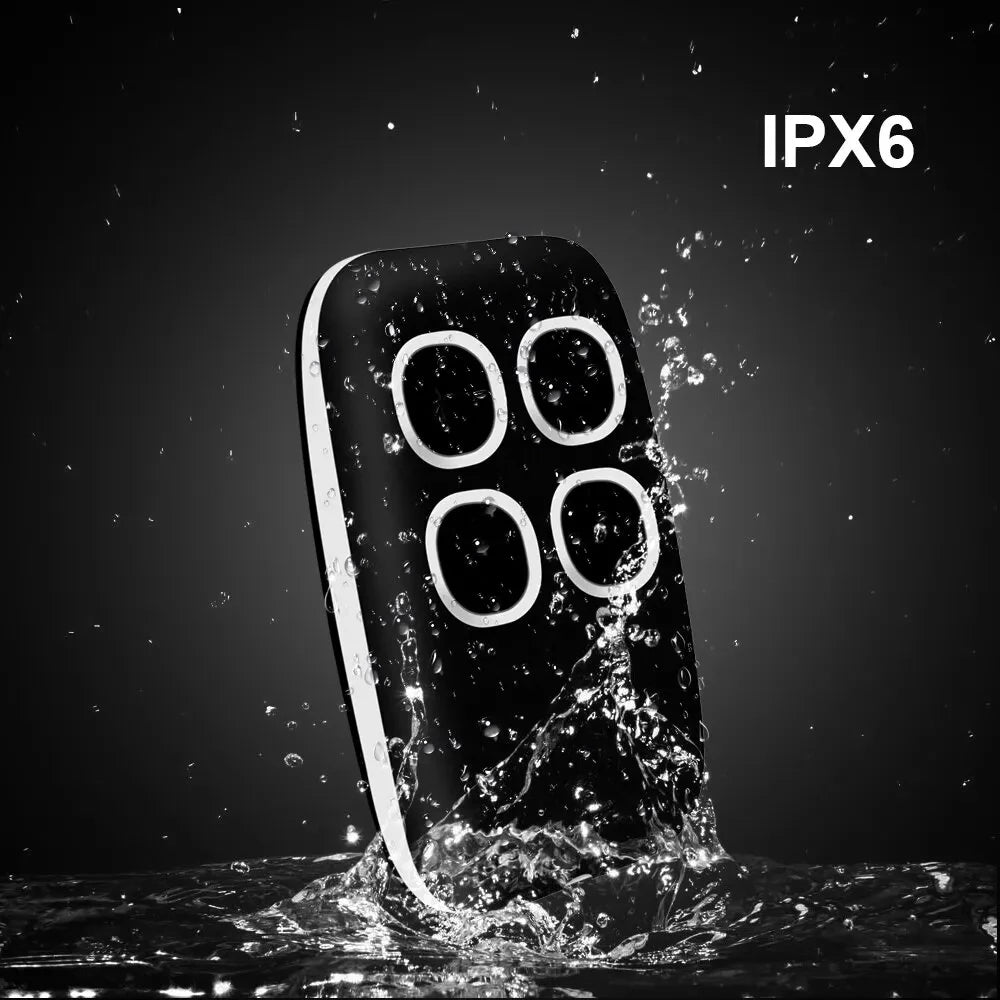

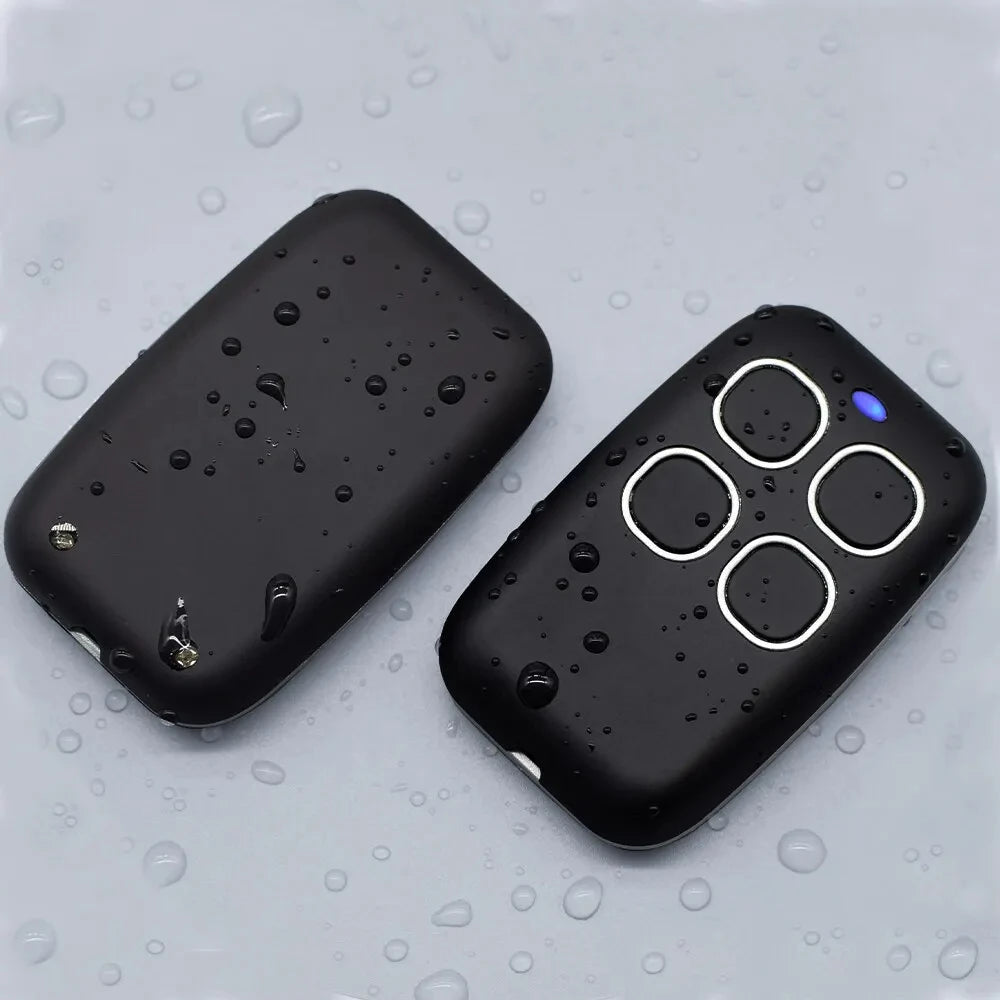

- Waterproof Rating: IPX6 protection against water spray.
PRODUCT DETAILS
- Material: ABS
- Buttons: 4

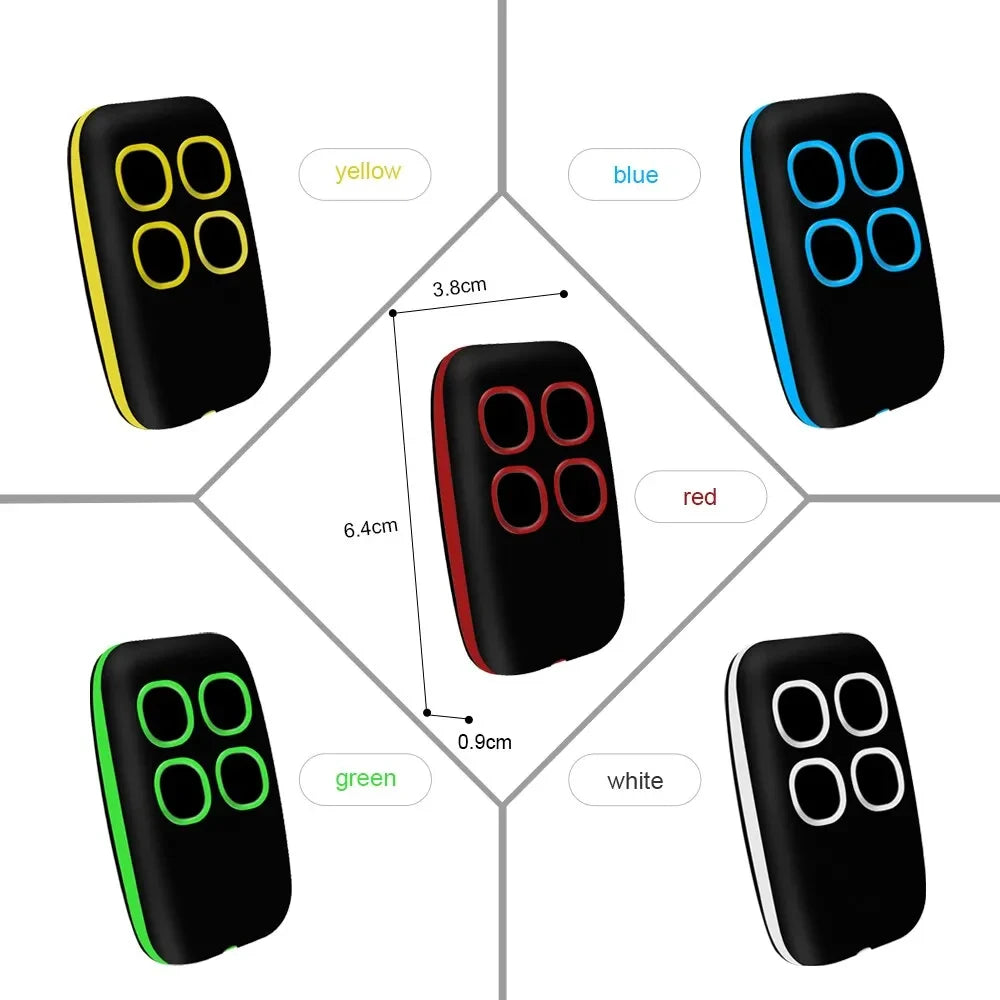

- Size: 63 × 37 × 12 mm
- Weight: 35g
- Battery: CR2032 (included)
- Frequency Range: 280–868MHz
- Transmission Distance: 30–150m (open area)
SUPPORTED FREQUENCIES
- 287MHz, 300MHz, 306MHz, 310MHz, 315MHz, 315.5MHz, 330MHz, 360MHz, 390MHz, 410MHz, 430.5MHz, 433.42MHz, 433.92MHz, 868.35MHz
- Compatible with frequency groups 286–361MHz and 384–400MHz
SCOPE OF USE
- Garage doors
- Gate control
- Motorcycles
- Car alarms
- Home and industrial security
- Short-range wireless devices
CLONING CAPABILITY
- Fixed Code Remotes: Will work directly after cloning.
- Rolling Code Remotes: Require additional programming on the receiver after cloning.
CLONABLE CHIP TYPES
-
2260, 2262, PT2264, 5326, SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918, 527, 1527, 2240, HCS101, partial HCS200/HCS201, HCS300/HCS301, PIC16F629, PIC16F630
NOT COMPATIBLE WITH
- HORMANN BS series 868MHz
- ROPER 868MHz
- SCS 433MHz
- AT-4, TO.GO VA
- BOSS 433MHz
- MOTORLINE
- MASTERcode
- PTX-5, TX55-868-4
- MUTAN CODE
- ECA 433MHz, 893LM
- Unbranded rolling code remotes
PAIRING NOTES
If LED turns solid red during cloning, the signal cannot be copied. In that case, try a compatible model.
PACKAGE INCLUDES
- 1 × Multi-Frequency Garage Remote Duplicator
- 1 × CR2032 Battery (pre-installed)
- 1 × Instruction Manual
Built for convenience without sacrificing reliability—ideal for cloning garage, gate, or security access remotes.
