Description
Take full control of your garage or gate systems with this 433MHz fast-copy remote control duplicator, designed for fixed code, learning code, and some rolling code systems. With four independent buttons, this remote allows you to clone up to four different remotes into one device, supporting gates, garage doors, access systems, alarms, and more.
This duplicator supports a wide range of chips including PT2262, EV1527, SC5262, HT6010, HCS200, HCS300, and other common IC types. Easy to program and compact in design, it offers quick code copying, reliable range, and strong memory retention, making it ideal for everyday access needs.
SPECIFICATIONS
- Model: 433MHz Copy Type Remote Control

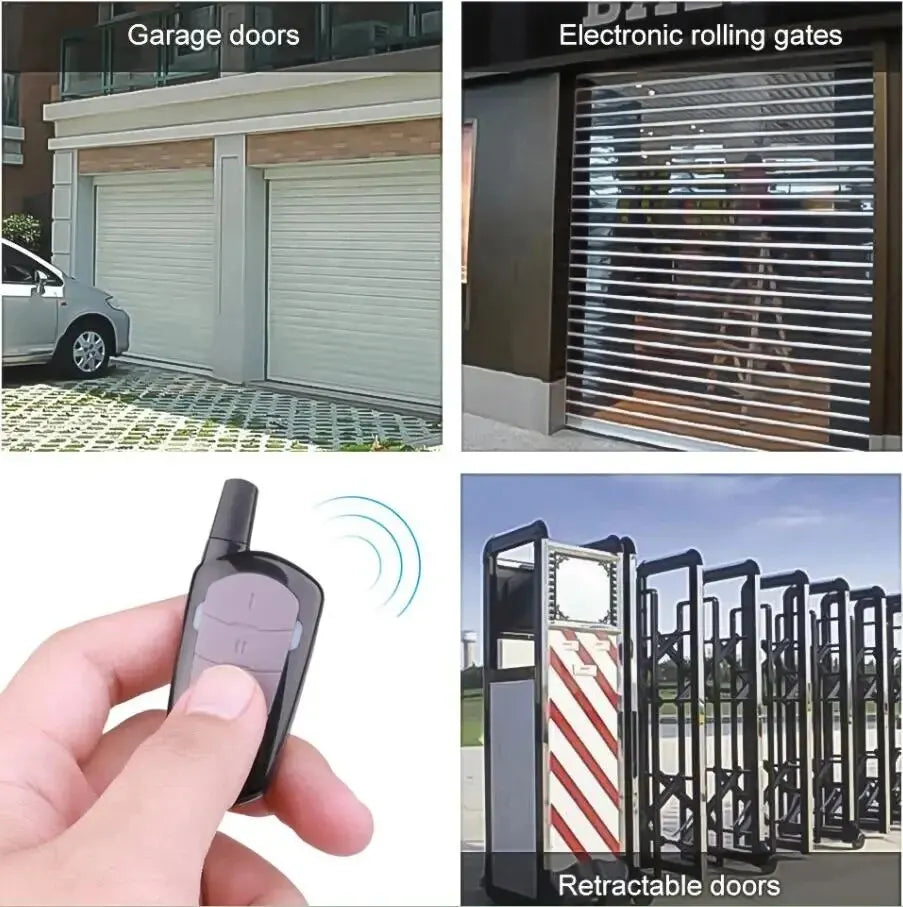

- Use: Garage Door, Gate Opener, Alarm, Portal Access
- Frequency: 433MHz / 433.92MHz
- Code Type: Fixed Code, Learning Code, Partial Rolling Code
-
Supported Chipsets:
- 2260, 2262, 2240, 1527, 527, 5326 (all manufacturers)
- PT2264, SC5262, SMC918 series
- HT600, HT6010, HT6012, HT6014, HT680, HT6207
- HCS101, HCS200, HCS201 (partial), HCS300, HCS301 (partial)
- Buttons: 4
- Material: Plastic
- Battery: Included

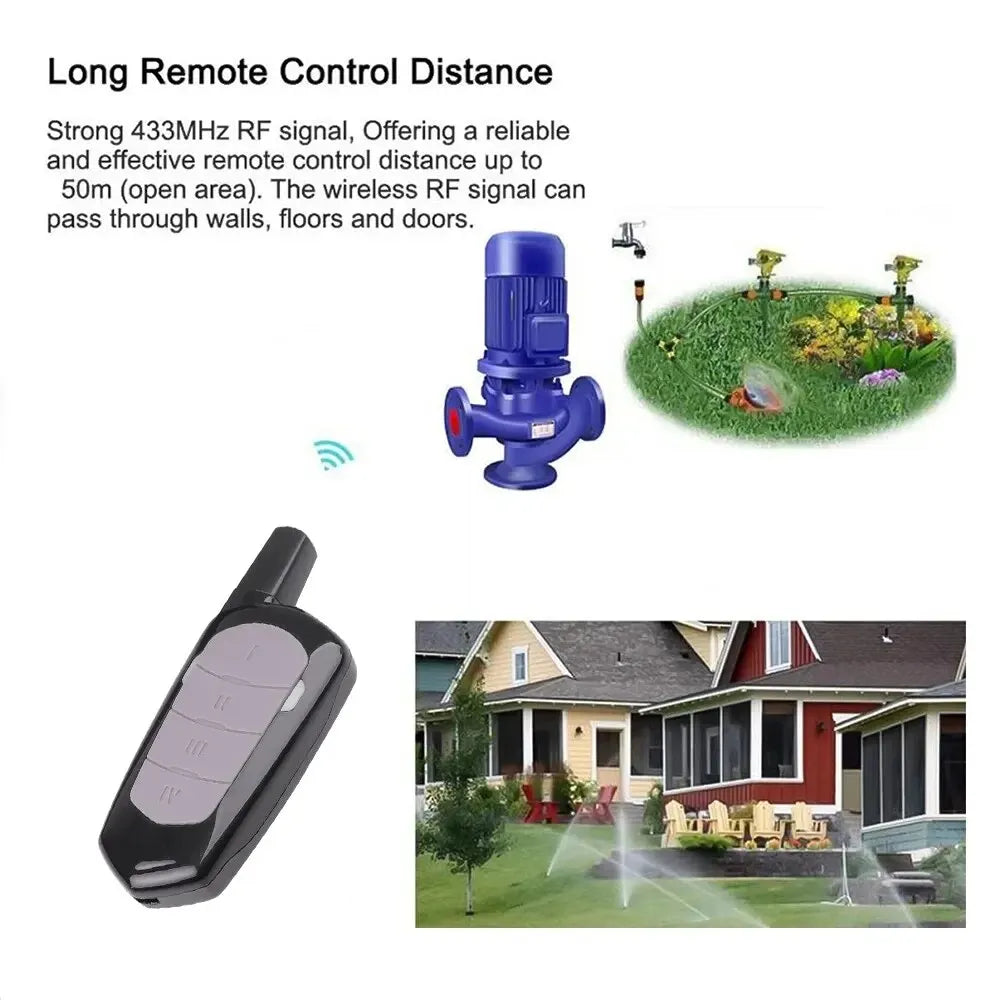

- Transmission Range: Up to 100m (open space)
- Origin: Mainland China
- High-concerned Chemical: None
Key Features:
- Clone up to 4 different devices
- Faster data copy with stable signal
- Wide compatibility across access systems
- Compact, lightweight design
- Retains codes even after battery replacement
Pairing Instructions:
1. Clear Existing Codes (Recommended Before Copying):
- Press and hold Button A and Button B at the same time until the LED flashes 3 times.
- Release Button B only (keep holding A), then press Button B three times quickly.
- The LED will begin fast flashing. Release all buttons.
- Test the remote by pressing any button—no LED means codes were cleared successfully.
2. Copy Code from Original Remote:
- Place the original and duplicator remotes side by side with zero distance.
- Press and hold Button A on the original and Button A on the duplicator at the same time.
- After a few seconds, the LED on the duplicator will flash rapidly—this means the code has been successfully copied.
- Repeat for other buttons as needed.
3. Recovery (if codes are cleared by mistake):
- Press and hold Button C and Button D at the same time.
- The LED will flash rapidly.
- Press any one of the buttons to restore the last copied code.
This versatile duplicator is perfect for consolidating multiple access devices into one remote—great for garage doors, gates, alarms, and home security systems.
