Description

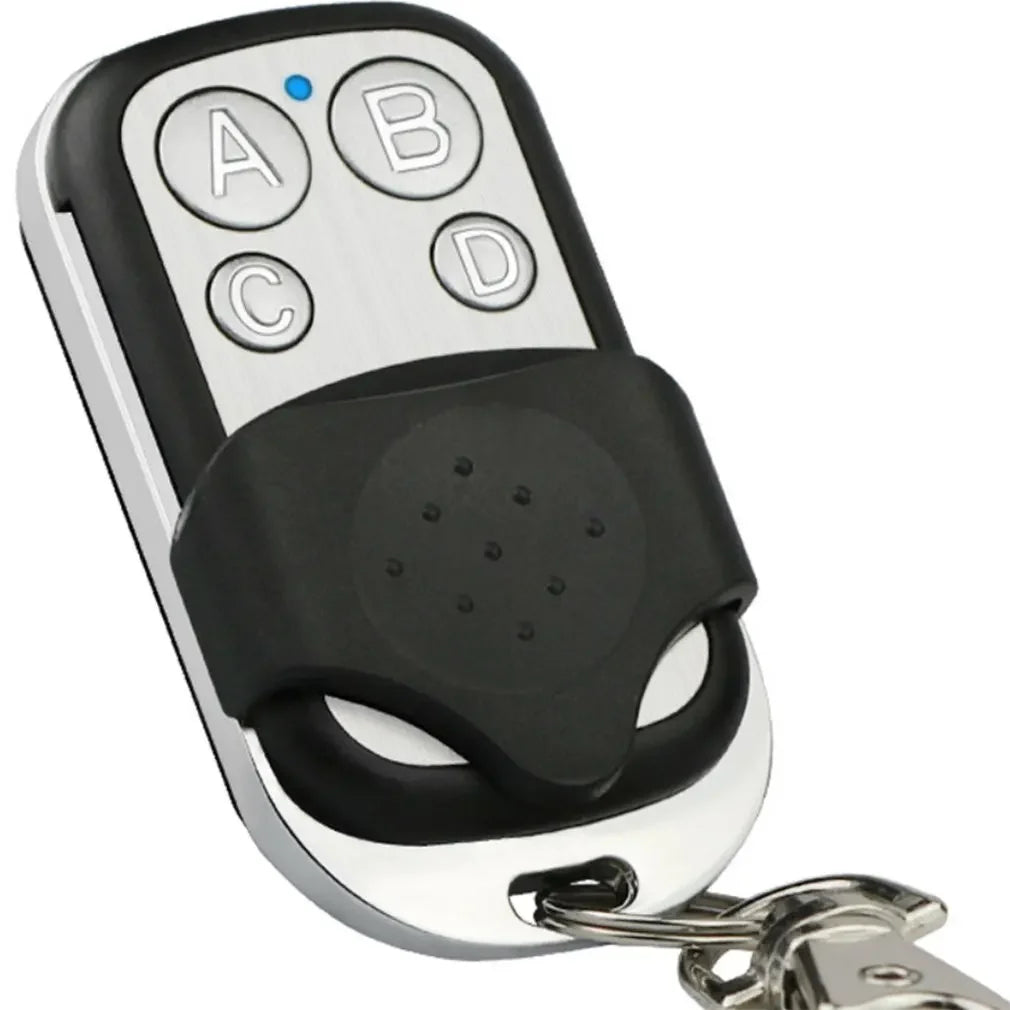

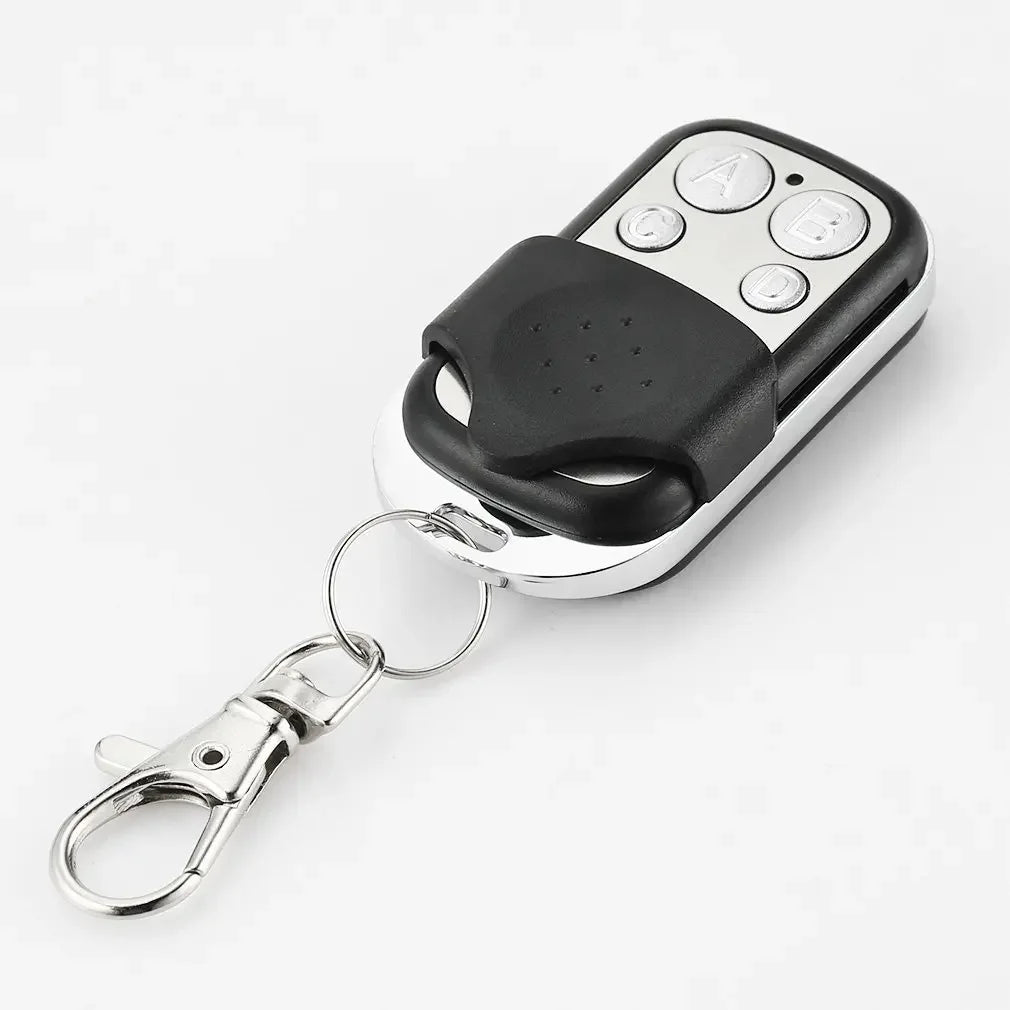

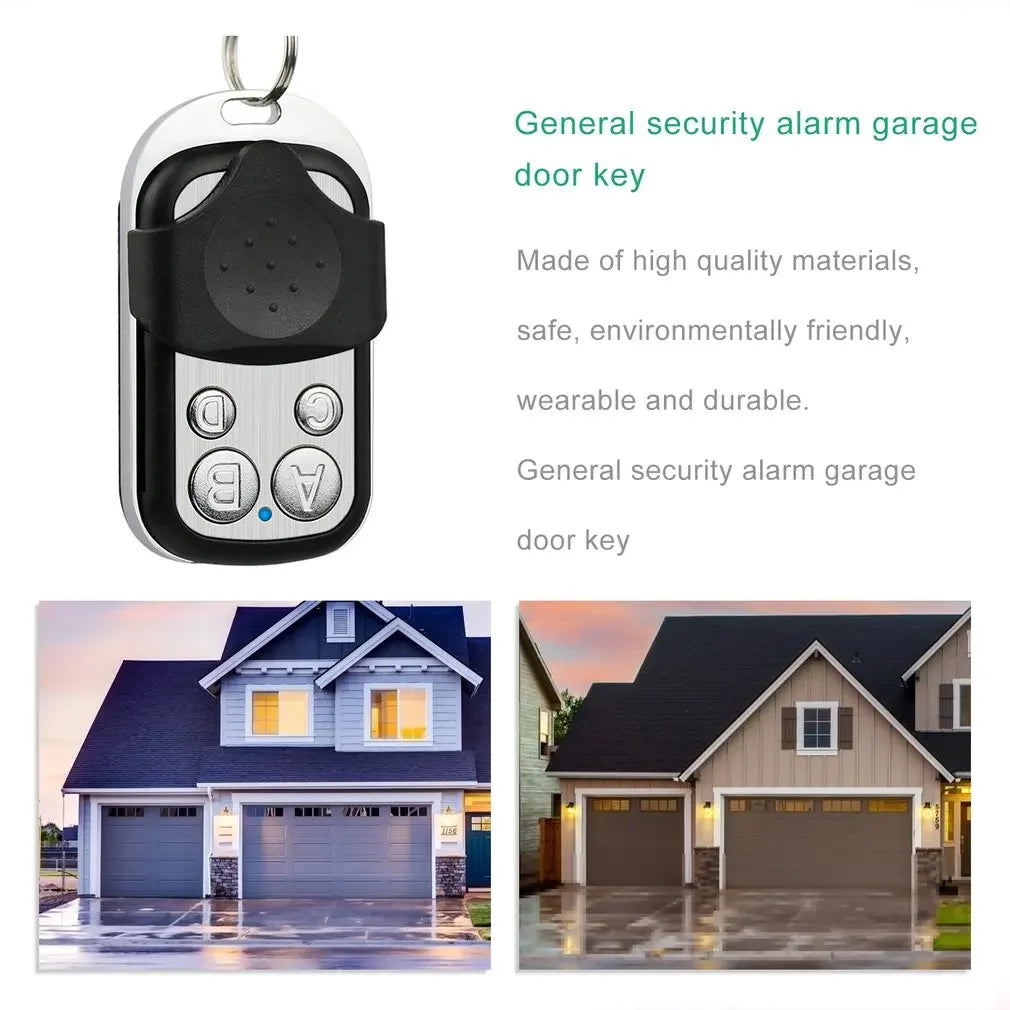

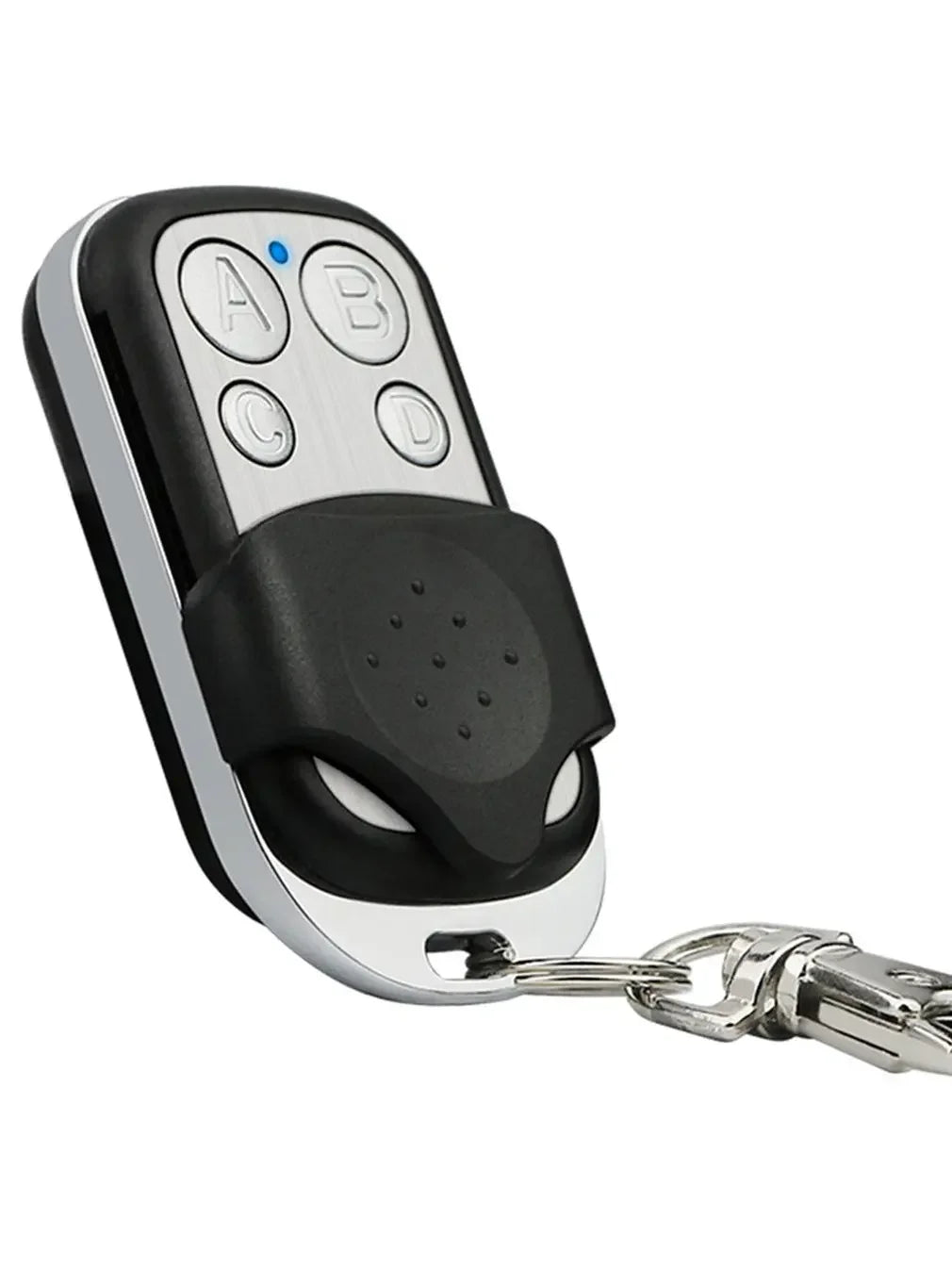

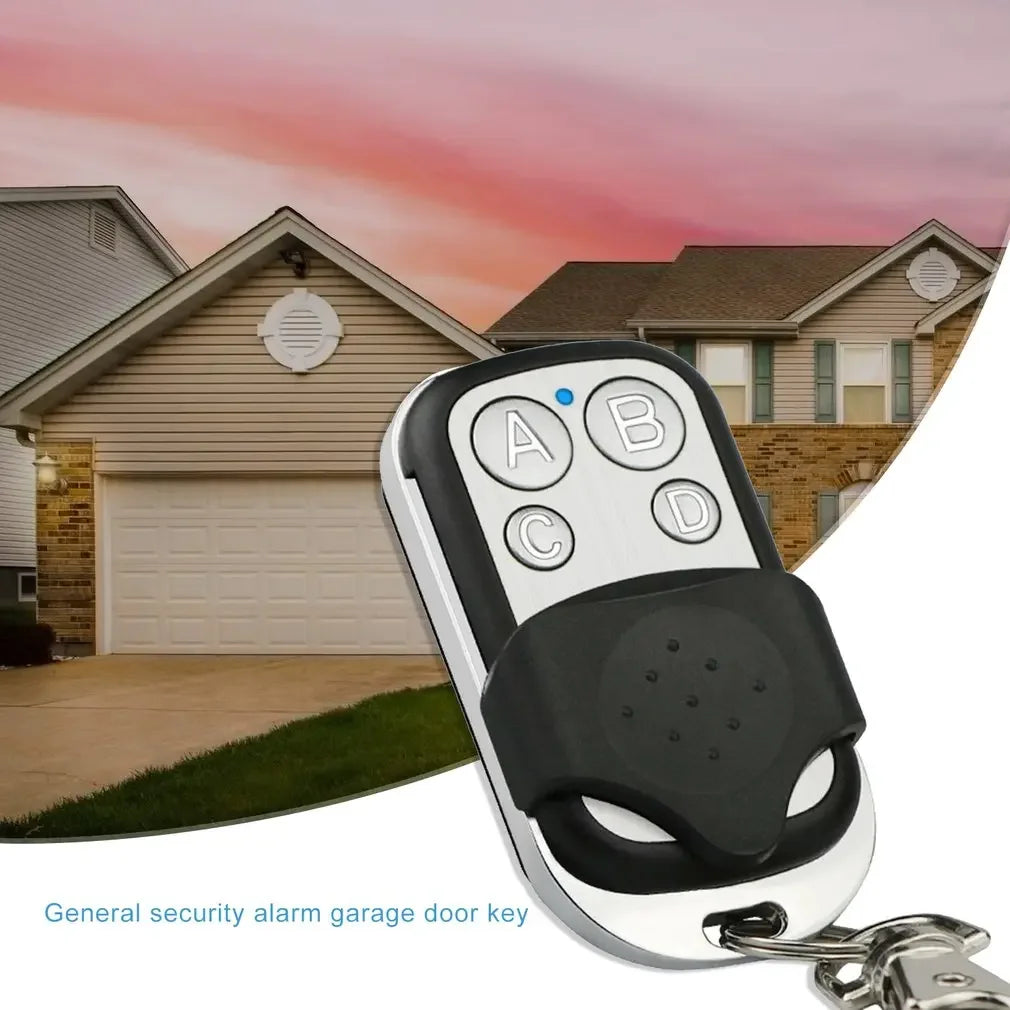

Easily duplicate your garage, gate, or alarm remotes with this versatile 433MHz 4-Channel Remote Control Duplicator.
Compatible with a wide range of fixed and rolling code systems, it’s ideal for replacing lost remotes or creating spares for family use across car, home, or office security systems.
SPECIFICATIONS
- Model Number: Electric Cloning Universal Gate Garage Door Remote Control
- Encoding Method: Rolling code
- Frequency: 433MHz
- Rated Voltage: 12V
- Rated Current: 10mA
- Wireless Transmission Distance: Up to 150m (open area)
- Channels: 4
- Material/Color: Black & Silver
- Origin: Mainland China
- Certification: None
- Chemical Concern: None
FEATURES
- Universal Compatibility: Supports both fixed code and select rolling code remotes at 433MHz.
- Wide Chip Support: Compatible with chips including 2260, 2262, PT2264, SC5262, HT600, EV1527, SMC918 series, 2240, and more.
- Multi-Use Application: Ideal for garage doors, car alarms, barrier gates, and other RF-based systems.
- 4 Buttons: Control up to 4 separate devices from one compact key fob.
- Easy Pairing Process: Simple copy-and-pair instructions for quick setup.
- Portable & Durable: Compact keychain-style design, great for everyday carry.
PAIRING INSTRUCTIONS
-
Clear Existing Code
-
Press and hold both top buttons simultaneously.
-
When the LED flashes three times, release the buttons – code is now cleared.
-
-
Copying Your Remote
-
Hold your original remote in one hand, this duplicator in the other.
-
Place them close together (side by side).
-
Press the button you want to program on both remotes simultaneously.
-
After the LED flashes quickly (after 3 blinks), the copy is successful.
-
Repeat for other buttons as needed.
-
IMPORTANT NOTES
- Not compatible with encrypted versions of HCS200, HCS300, or 32-bit rolling code remotes.
- Make sure your original remote is functioning and uses the same 433MHz frequency.
- Dimensions and appearance may vary slightly due to lighting or manufacturing tolerances.
