Description

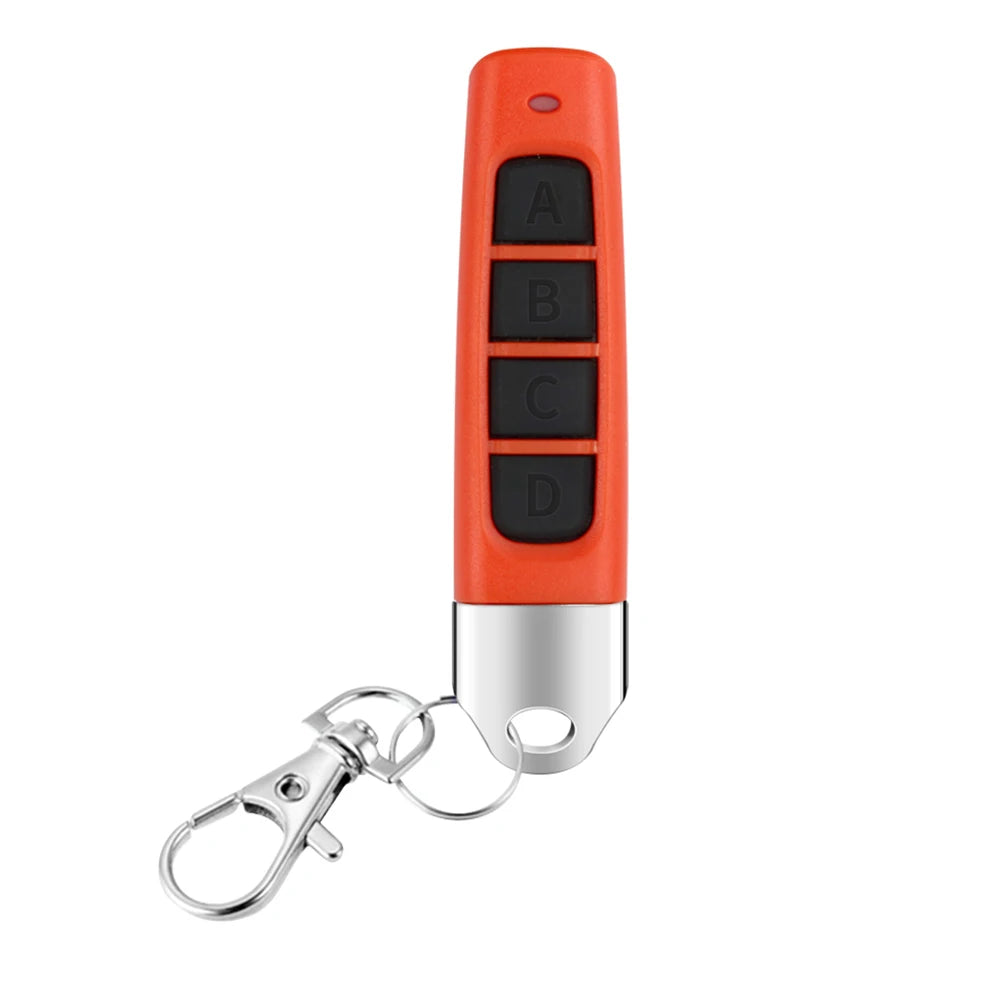

Clone your garage door, gate, or alarm system remote quickly and easily with this VODOOL 433MHz remote control duplicator. Compact and colorful, this multi-functional copy remote is compatible with a wide range of fixed and learning code remotes. It supports up to 4 different signals and is ideal for replacing or duplicating existing key fobs.
SPECIFICATIONS
- Brand Name: VODOOL
- Model Number: Copy Remote Control (AK-KB1301A)
- Frequency: 433MHz
- Encoding Method: Learning code, Fixed code, Limited Rolling code
- Keys: 4
- Material: Durable Plastic

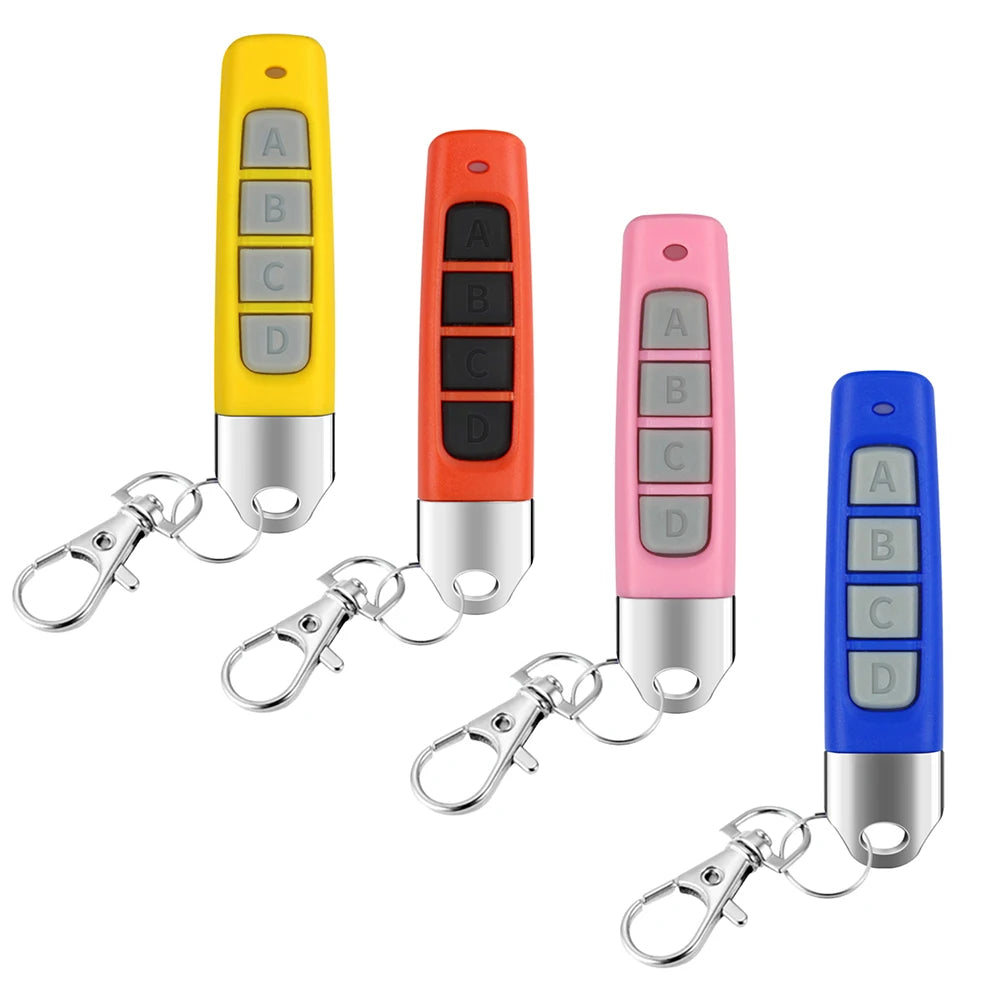

- Available Colors: Blue, Pink, Red, Yellow, Mixed (optional)
- Battery: 27A 12V (included)
- Wireless Range: 50–150m (open space)
- Size: 68 × 16 × 15 mm
- Weight: 22g
- Certification: CE
- Origin: Mainland China
- High-Concern Chemicals: None
FEATURES
- Clone up to 4 remote signals with individual buttons
- Supports popular fixed and learning code chipsets
- Fast programming with simple LED-guided process
- Code clearing and recovery functions for convenience
- Long-range wireless performance up to 150m
- Compact and lightweight with stylish color options

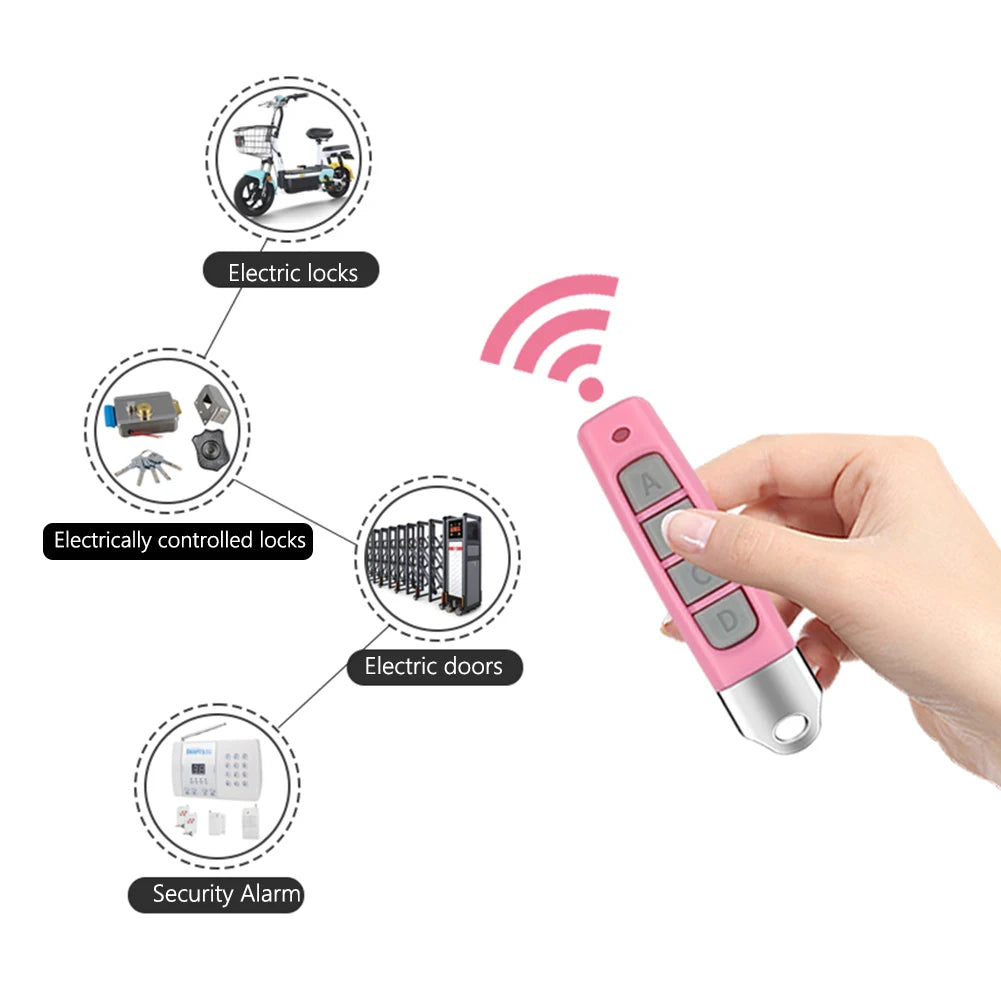

- Ideal for use with garage doors, retractable gates, and alarms
SUPPORTED CHIPSETS (Examples Only)
- 2260 (PT2260, SC2260, HX2260)
- 2262 (PT2262, SC2262, HX2262)
- 1527 (EV1527, HS1527, HX1527)
- 2240, FP527, SMC918, HT680, HT12D, HT6010–6014, PIC16F629/630, and more
As long as the digital part of the chip matches, brand prefixes may vary.
NOT COMPATIBLE WITH:
- Encrypted microcontroller chips like HCS200, HCS201, HCS300, HCS301
- Most two-way and rolling code remotes
INSTRUCTIONS

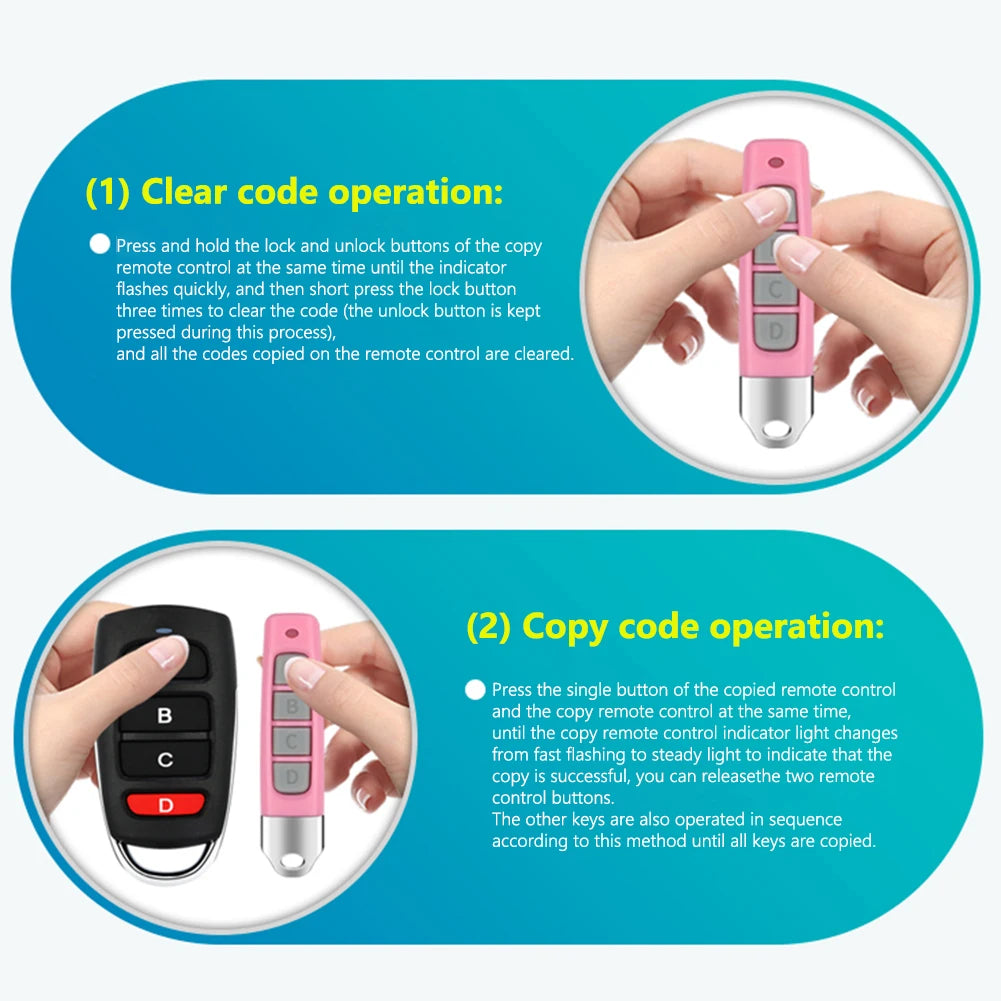

- Clear Code:
- Press the unlock and lock buttons at the same time.
- After 3 quick LED flashes, release one button.
- Press the other button 3 times until LED flashes rapidly.
- Press any button to confirm. If LED stays off, code has been cleared.
-
Copy Code:
- Hold both remotes close together.
- Press the same button on both remotes.
- LED flashes slowly, then quickly — release.
- Press button again — if LED stays on, copy was successful. Repeat for other keys.
-
Restore Code:
- Press bottom two buttons together until LED flashes quickly.
- Press any button — if LED stays lit, the code is restored.
-
Fixing Partial Copy Issues:
Clear all codes.
- Re-copy failed buttons.
- Clear all codes again.
- Restore — now all buttons should function correctly.
PRECAUTIONS
- Ensure the original remote is functional before copying
- Only compatible with fixed code, learning code, and some simple single-chip systems
- Rolling code copying is not recommended due to encryption issues
- Always verify code clearing was successful before attempting to copy
- Keep remotes close together and try different angles if needed for signal transfer
PACKAGE OPTIONS
- 1 × Copy Remote Control

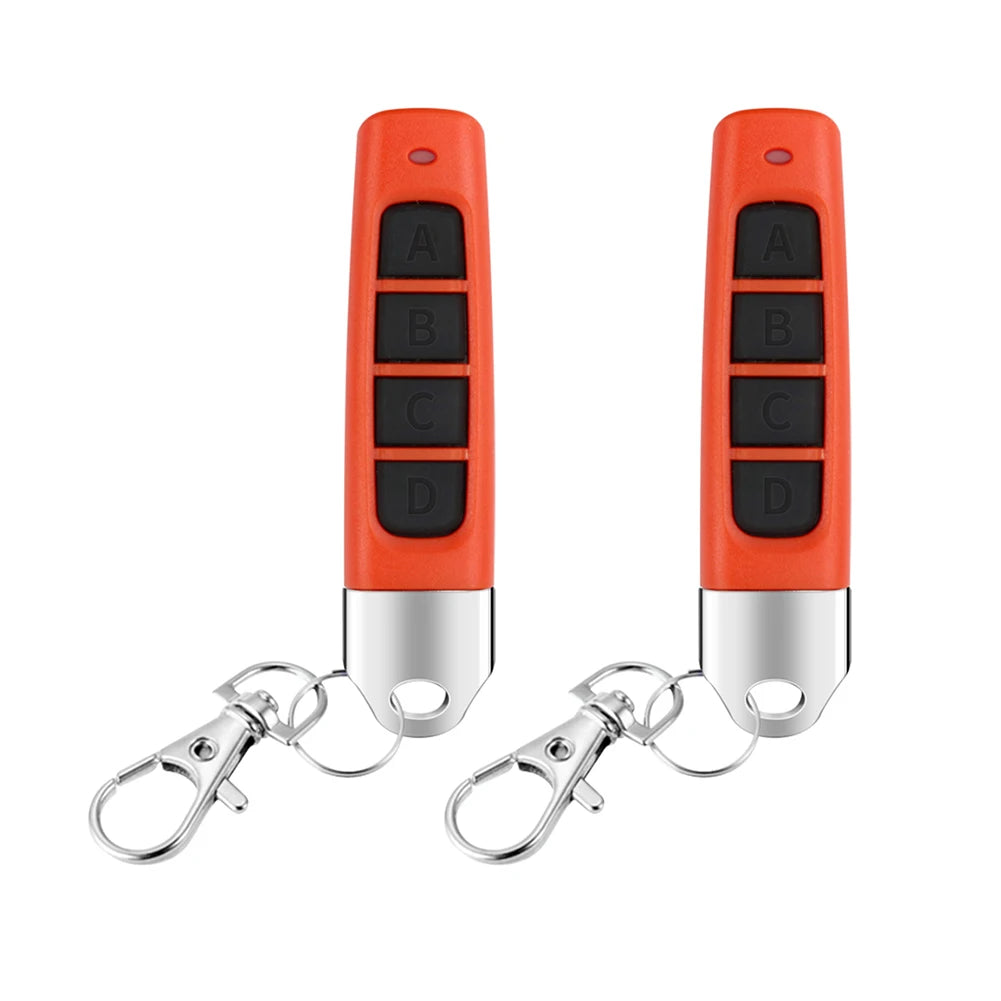

- 2 × Copy Remote Controls
- 4 × Copy Remote Controls
